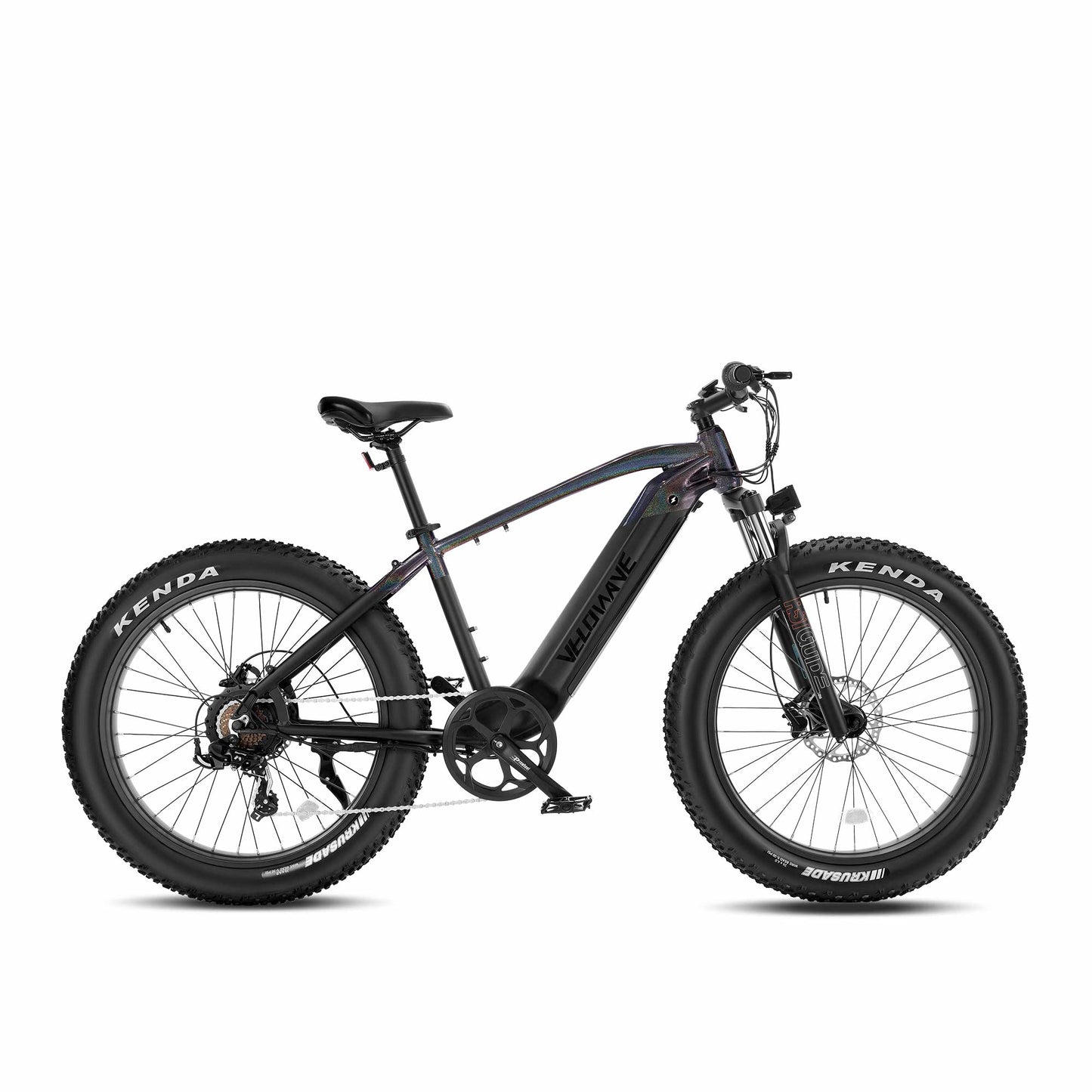

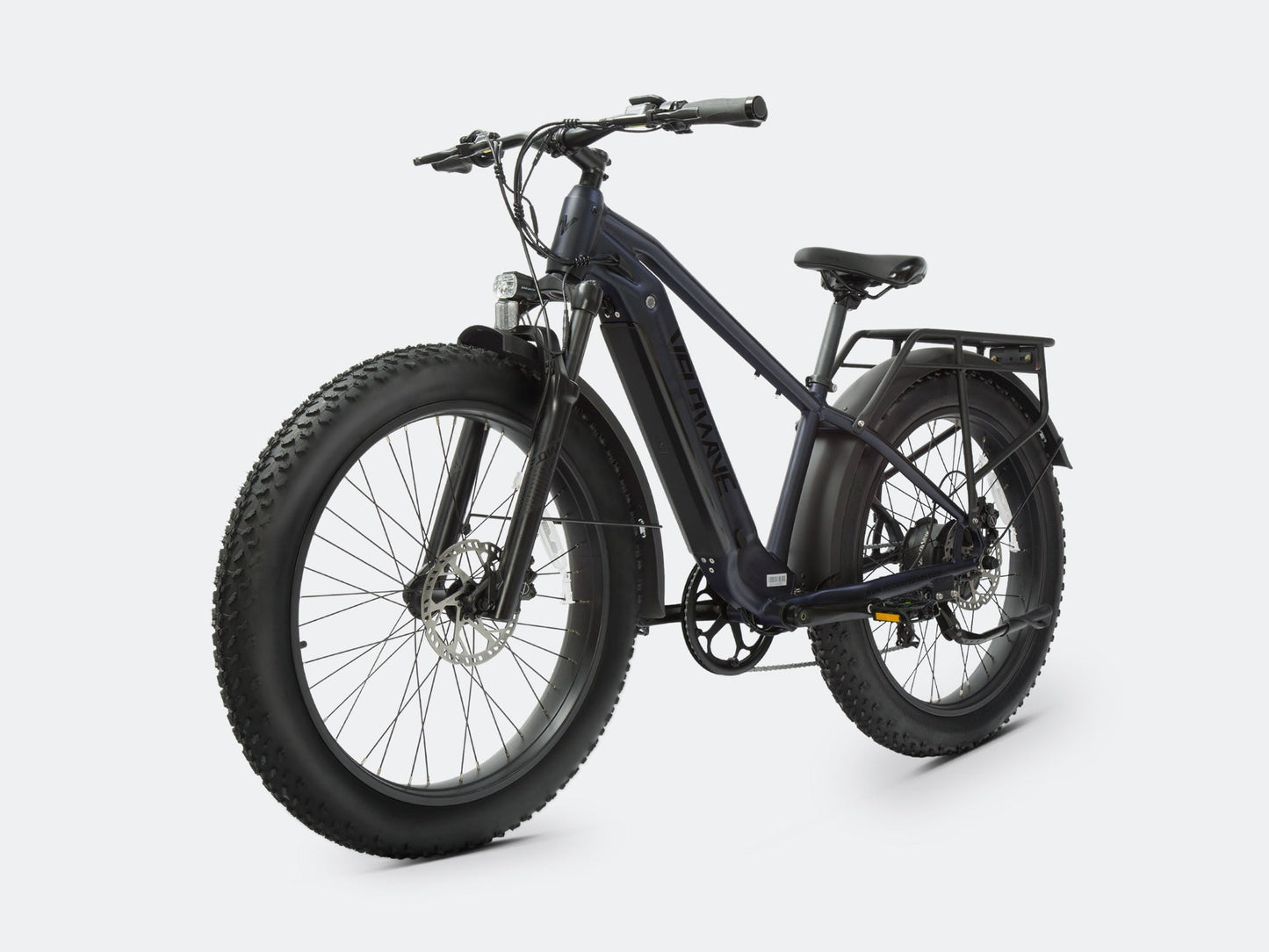

Ranger ebike is the sharpest and most versatile among Velowave ebikes. Fat tires, suspension fork, and top tube design can help strengthen the stability of the body while the flat handlebar reduces the air resistance of the rider when riding. So this electric bike is more suitable for off-road/off-country, although it can be used on all terrains.
The color screen provides you with convenient control and a better visual experience. The optional fenders and racks help avoid mud splashing on your body when you are riding off-road.
As a flagship ebike, Ranger has stood the test of time and customers.
Seat Post Length 18.0'' |
Total Length 76.3'' |
Seat Tube Angle 70° |
Head Tube Length 4.9'' |
Handlebar Height 42.5' |
Head Tube Angel 71° |
Bottom Bracket Height 14.7'' |
Chainstay Length 20.1'' |
Front-Center 26.8'' |
Wheelbase 46.8'' |
Standover Height 30.2'' |
Reach 18.1'' |
.
REMOVABLE LITHIUM BATTERY
High-quality 48V15AH LG cells battery with core technology with small size and large capacity for long-distance riding and fast charging. A single charge can last up to 30-40 Miles. Use the pedals for more than 40 Miles.
750W POWERFUL MOTOR
750W BAFANG Geared Hub Motor contains core technology and is trusted, performing well in cold and high-temperature environments, providing strong power with low noise and high speed, and is resistant to guarantee a longer life expectancy. You can ride easily, smoothly, and efficiently.
MOTOR
|
750W BAFANG Geared Hub Motor, Rated 750W, Peak 1275W, Max Torque 80NM
|
BATTERY
|
48V 15AH, LG Cells
|
CHARGER
|
48V 2Amp
|
RIDING MODE
|
Cadence Sensor
|
DISPLAY
|
Multifunctional Color-Screen Display
|
DERAILLEUR
|
Shimano 7-Speed Rear Drivetrain ARDTY200GSLD
|
CRANKSET
|
52T, 170mm Alloy Crank
|
QUICK RELEASE
|
Front Tire
|
FRAME MATERIAL
|
6061 Aluminum
|
FORK
|
Front Hydraulic Suspension Fork, Travel: 75mm
|
TIRE
|
Kenda 26"*4.0" Fat Tires
|
BRAKE
|
Front & Rear Hydraulic Disc Brakes
|
THROTTLE
|
Thumb Throttle
|
Thumb Throttle
|
48V 10W LED Light
|
SADDLE
|
Comfortable Wide Saddle
|
PEDALS
|
Platform Pedals
|
KICKSTAND
|
Side kickstand
|
SPEED |
|
