- Monocrystalline silicon solar cells
- Multi-layered cell technology makes them highest quality
- High conversion efficiency up to 23%
DURABLE SOLAR PANEL
- ETFE-laminated solar cells offer weather-resistant outdoor durability and longer life
- Store and protect the cable and ports in a storage bag
- Shockproof & dustproof
SUPERIOR PORTABILITY
- Foldable design for easy transport
- Compact and lightweight
- Rubber handle make it easy to carry

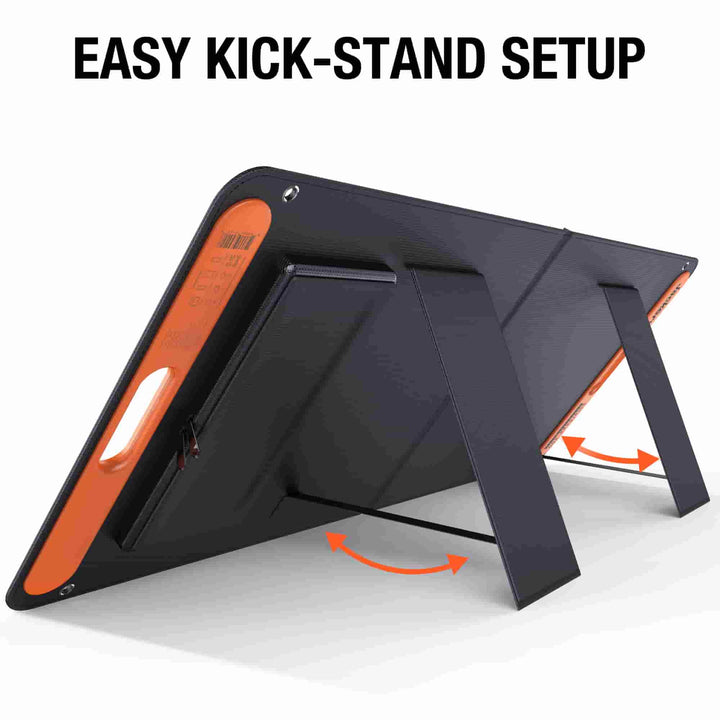

- Adjustable kickstands for easy installation or angle adjustment
PREPARING YOUR SOLAR GENERATOR

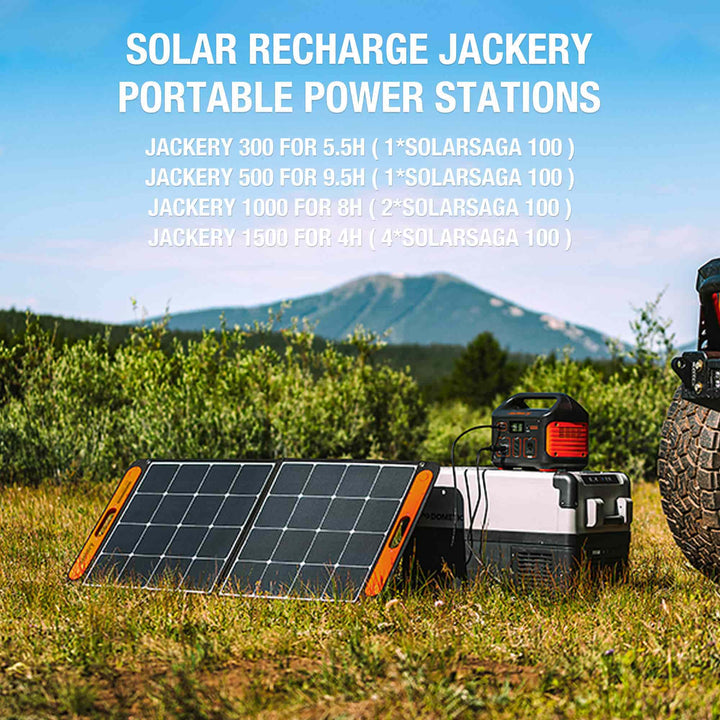

OFF-GRID SOLAR GENERATOR, GREEN AND CLEAN POWER SUPPLY
Four SolarSaga 100 for the Explorer 1500
Four SolarSaga 100W solar panels can quickly charge the Explorer 1500 (not included within 4 hours(from 0-80%) by connecting together with two Solar Power Cable (package included).
Solar recharging steps:
1. Connect the first panel - find the "DC interface" on the back of SolarSaga 100 and plug it in solar power cable;
2. Connect the second panel - follow step 1;
3. Connect the solar panels and the solar power cable with the Explorer 1500's DC input.
Two SolarSaga 100 for the Pro Level Explorer 1000
Two SolarSaga 100W solar panels can quickly charge the Explorer 1000(not included)within 8 hours by connecting together with a SolarSaga Y Parallel Cable (package not included).
Solar recharging steps:
1.Find the DC interface on the back of SolarSaga 100;
2.Connect the DC interfaces of 2*SolarSaga 100 with the Y Parallel Cable;
3. Connect the Y Parallel Cable with the Anderson input of Explorer 1000.
Single SolarSaga 100 for the Explorer 500/300/240
SolarSaga 100W solar panel can quickly charge The Explorer 500/300/240(not included)within 9.5/5/4 hours.
Solar recharging steps:
1.Find the DC interface on the back of SolarSaga 100;
2. Connect DC interface with the DC input of Explorer 500/300/240.
CHARGE YOUR PORTABLE POWER STATION FASTER

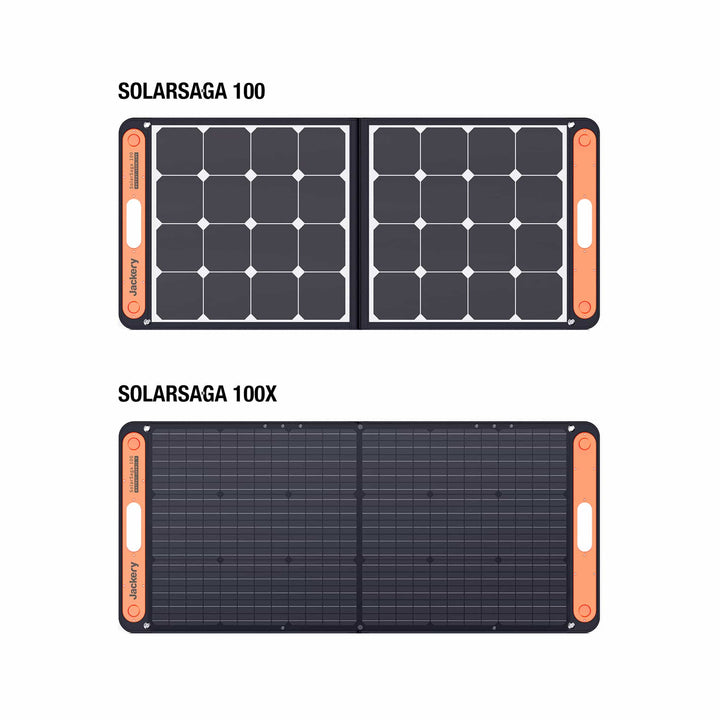

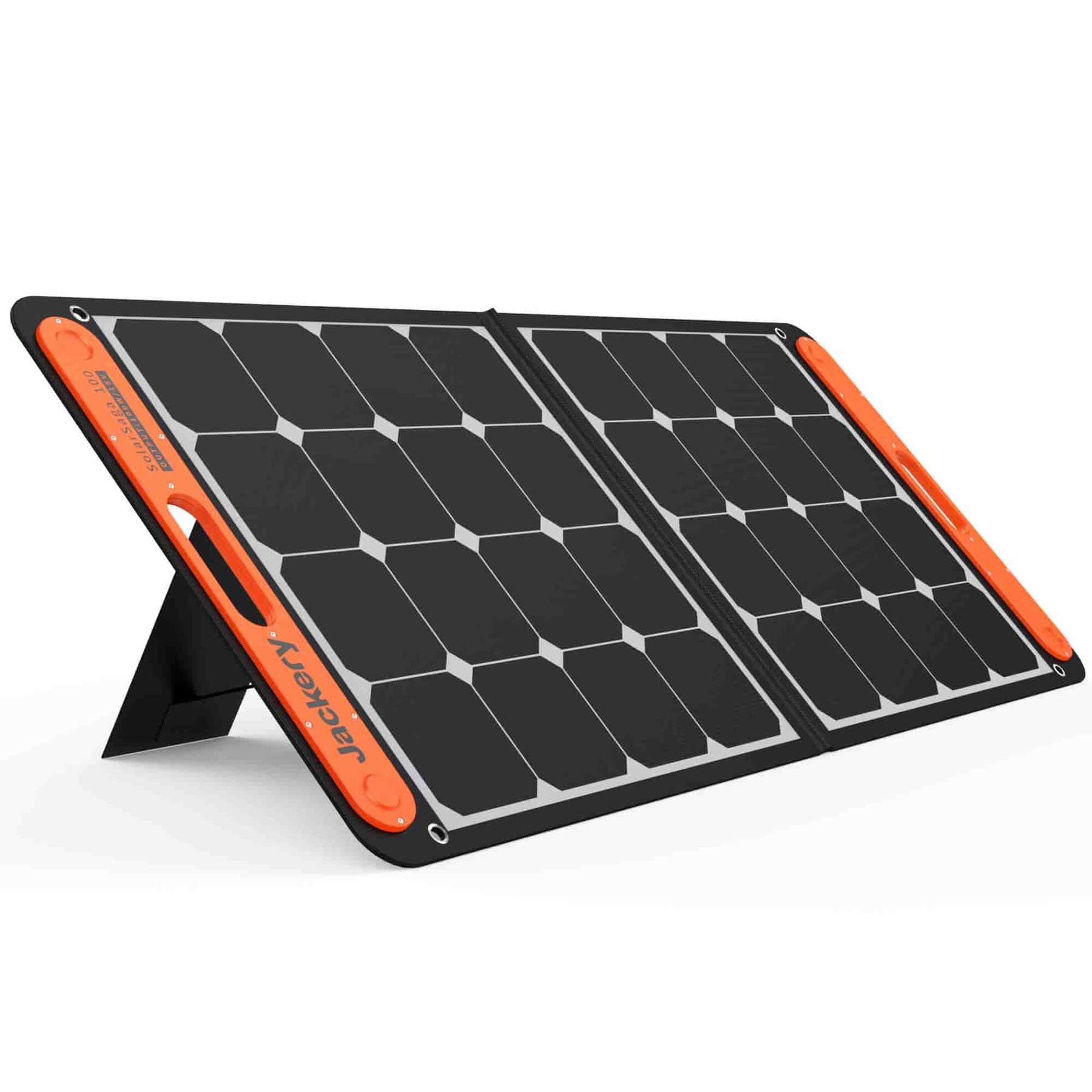

Specifications of SolarSaga 100
SOLAR
Peak Power: 100W
Cell Efficiency: 23%
Power Voltage: 18V
Power Current: 5.55A
Open Circuit Voltage: 21.6V
Short Circuit Current: 6A
PORTS
USB-A Output: 5V, 2.4A
USB-C Output: 5V, 3A
GENERAL
Weight: 10.33 lbs (4.69 kg)
Dimensions (folded): 24 x 21 x 1.4 in (610 x 535 x 35 mm)
Dimensions (unfolded): 48 x 21 x 0.2 in (1220 x 535 x 5 mm)
Operating Usage Temperature: 14-149F (-10-65℃)

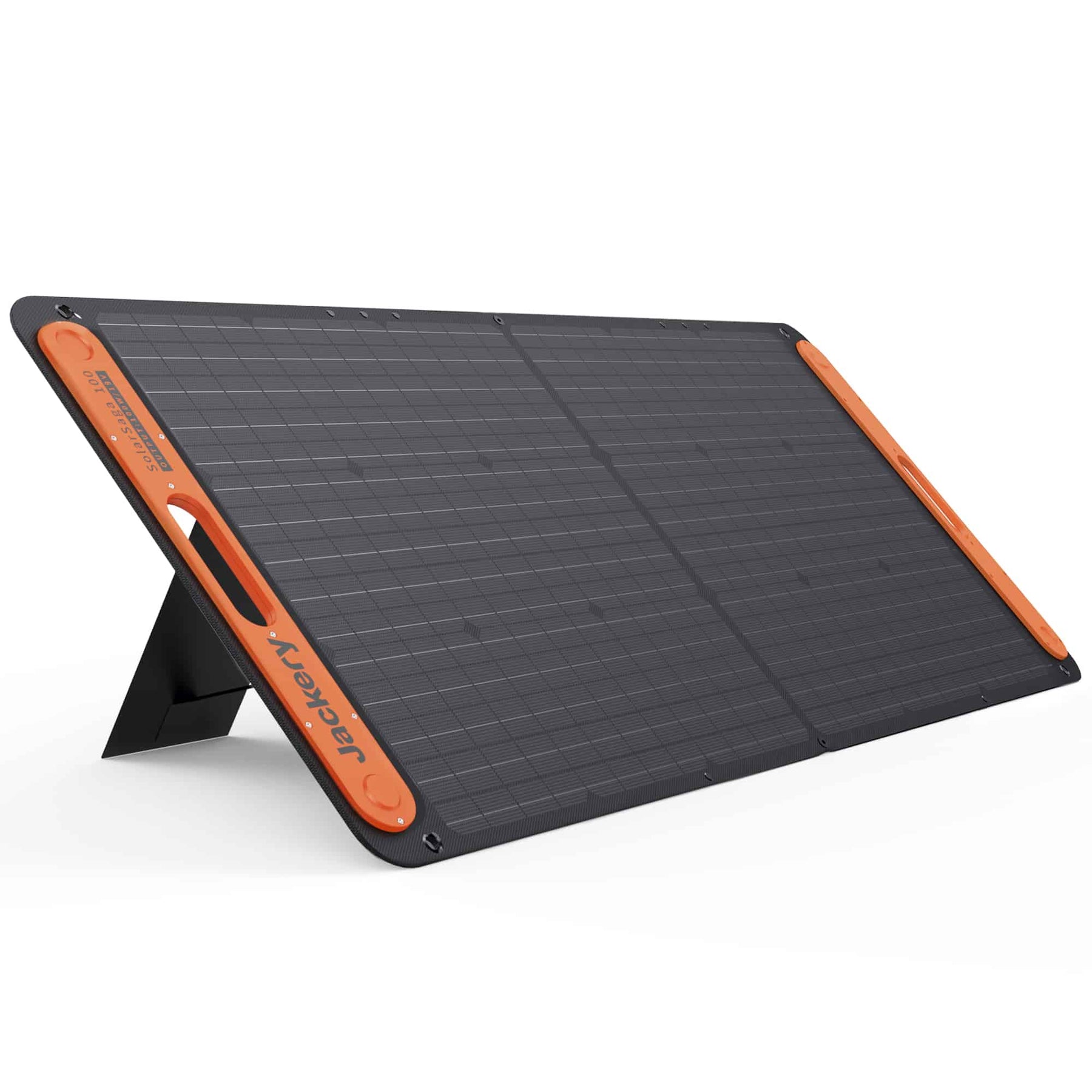

Specifications of SolarSaga 100X
SOLAR
Peak Power: 100W
Cell Efficiency: 23%
Power Voltage: 19V
Power Current: 5.27A
Open Circuit Voltage: 24.2V
Short Circuit Current: 5.42A
PORTS
USB-A Output: 5V, 2.4A
USB-C Output: 5V, 3A
GENERAL
Weight: 10.33 lbs (4.69 kg)
Dimensions (folded): 24 x 21 x 1.4 in (610 x 535 x 35 mm)
Dimensions (unfolded): 48 x 21 x 0.2 in (1220 x 535 x 5 mm)
Operating Usage Temperature: 14-149F (-10-65℃)
POWER OUTDOORS AND CARE FAMILIES
RV CAMPING/FISHING/OFF ROAD/HUNTING/BACKYARD GETAWAY/EMERGENCY

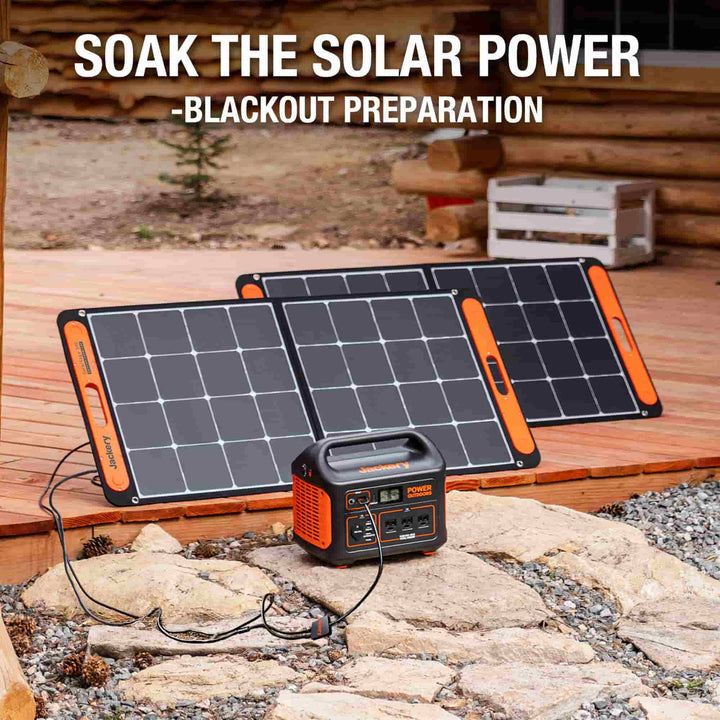

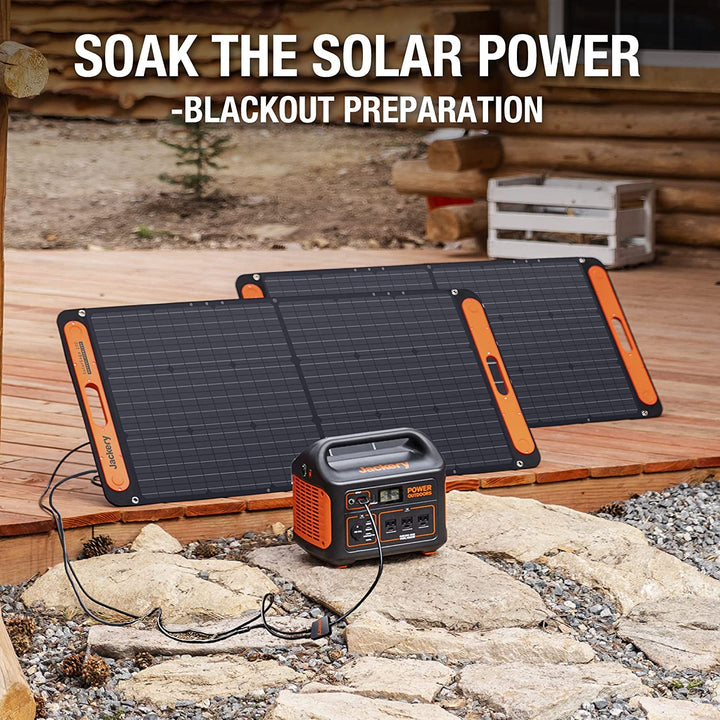

Build up your Portable-Solar-Generator System together with Jackery Solar Saga 100W and Jackery Explorer 240/300/500/1000/1500 power station (sold separately). Jackery solar generator is ideal for any outdoor activities such as camping, climbing, hiking, picnic and even unexpected power outages. It could run most of your essential outdoor appliances and electronics. When you need power in special circumstances, Jackery solar generator can also be your reliable backup power supply.
