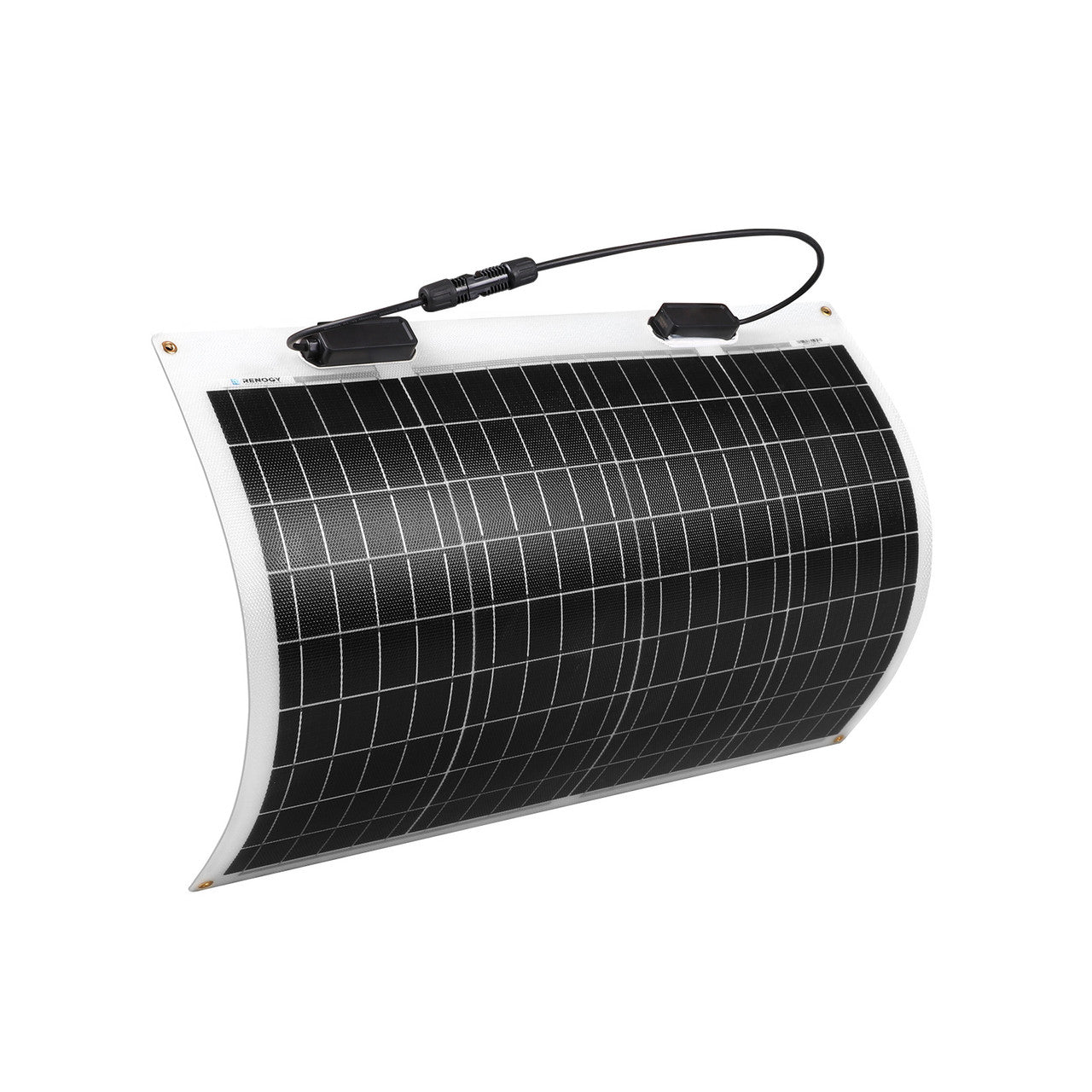

Renogy 50 Watt 12 Volt Flexible Monocrystalline Solar Panel(back order)

DESCRIPTION

Traditional solar panels are rigid and often enclosed in tempered glass. The Renogy 50W Flexible Solar Panel is anything but traditional. Perfect for marine use or placement on top of a van or vehicle, the Renogy 50W Lightweight Solar Panel is thin and capable of flexing up to 248 degrees. At 2.87 pounds, this flexible solar panel weighs only a quarter of its traditional 50W counterpart. Highly flexible, this lightweight panel can easily be installed on curved surfaces. This panel can also be used for other various applications, including providing power on a boat or teardrop trailer.

Mounting Recommendation: Modules must be mounted using silicone structural adhesive on the backside of the panel, grommets are only to be used for non-mobile applications. For detailed installation methods, please consult a local contractor for guidance.

KEY FEATURES

Extremely Flexible

• This panel is capable of meeting a wide range of applications where standard panels can be inconvenient to mount, such as on the curved roof of an airstream

Ultra Lightweight

• Thanks to advanced polymer materials, this product weighs 70% less than conventional solar panels, making transportation and installation a breeze

Super Thin Lamination

• Hardly noticeable, the Renogy 50W Lightweight Panel laid flat is only a tenth of an inch tall making it ideal for a stealthy solar setup.

Highly Durable

• Rigorously tested, the 50W panel was designed to withstand extreme wind of up to 2400 Pa and snow loads of up to 5400 Pa

SPECIFICATIONS

ELECTRICAL SPECIFICATIONS

Maximum Power at STC: 50W

Open Circuit Voltage: 24.3V

Short Circuit Current: 2.75A

Optimum Operating Voltage: 20.3V

Optimum Operating Current: 2.47A

Module Efficiency: 14.4%

Maximum System Voltage: 600 VDC UL

Maximum Series Fuse Rating: 15A

MECHANICAL SPECIFICATIONS

Cell Type: Monocrystalline (6.25 x 1.85 in)

Number of Cells: 36 (4 x 9)

Dimensions: 26.9 x 20.0x 0.16 in (683 x 508 x 4 mm)

Weight: 2.87 lbs (1.3 kg)

Front Glass: Tempered Glass 0.13 in (3.2 mm)

Frame: Black Anodized Aluminum Alloy

Connectors: Solar Connectors

Fire Rating: Class C

THERMAL CHARACTERISTICS

Operating Temperature: -40°F to 185°F(-40ºC to +85ºC)

Nominal Operating Cell Temerature (NOCT): 45±2ºC

Temperature Coefficient of Pmax: -0.37%/C

Temperature Coefficient of Voc: -0.28%/C

Temperature Coefficient of Isc: 0.048%/C

SOLAR CONNECTORS

Rated Current: 30A

Maximum Voltage: 1000VDC

Maximum AWG Size Range: 10AWG

Temperature Range: -40ºF to 194ºF

IP Rating: IP 67
