Renogy 200 Watt 12 Volt Flexible Monocrystalline Solar Panel
Renogy 200 Watt 12 Volt Flexible Monocrystalline Solar Panel
Fast Shipping | Easy Returns | No Sales Tax
- Fast Shipping: We Ship In 1-3 Days
- Place An Order (888) 886-1488
- 9,500+ Units Sold
Couldn't load pickup availability
DESCRIPTION
The Renogy 200W Lightweight Monocrystalline Solar Panel enhances module efficiency while minimizing its weight. It is the perfect option for any off-grid solar system, especially for transportation applications such as RVs and boats. This solar panel frame features a lightweight substrate and laminate, perfect for outdoor applications.

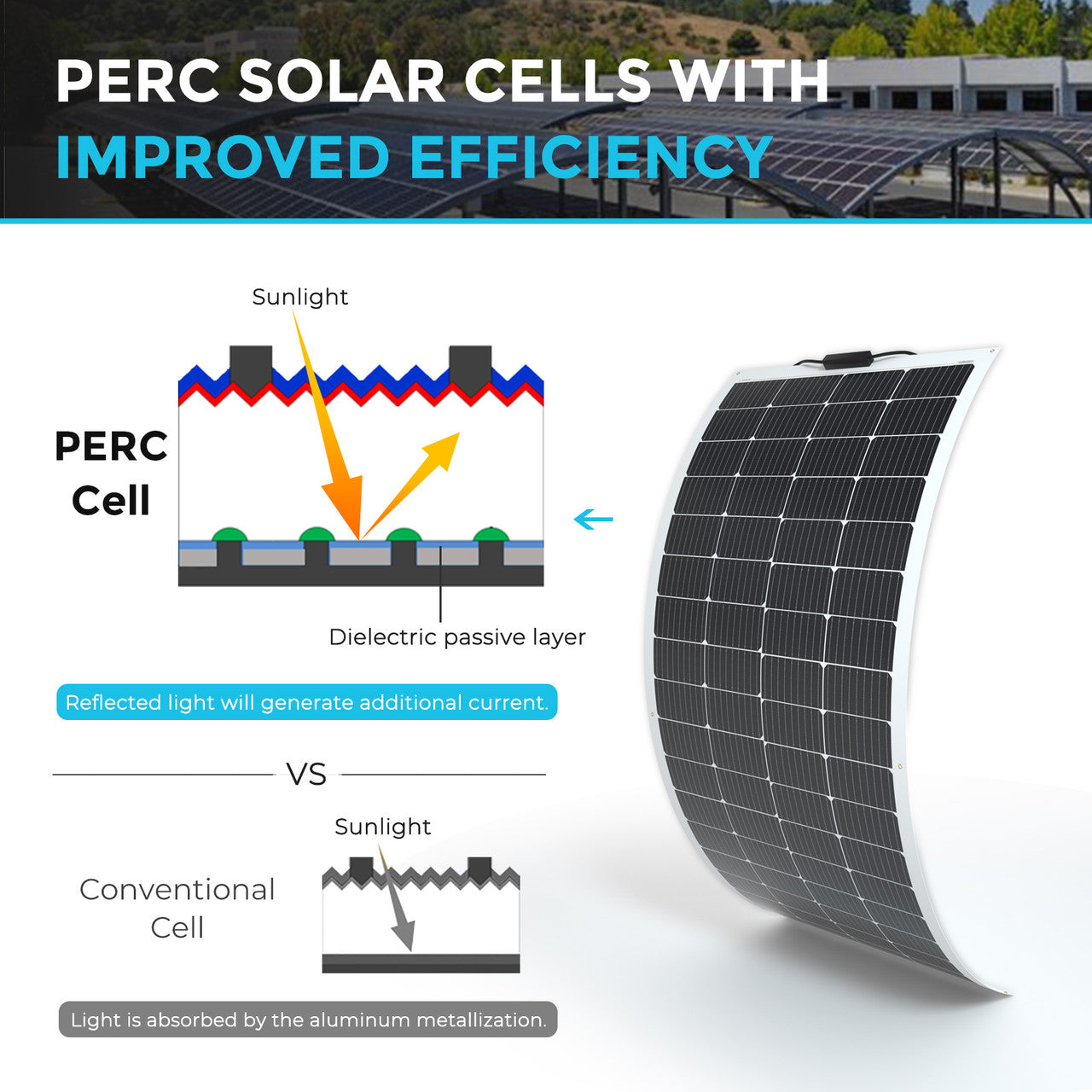

This solar panel combines high efficiency (PERC) monocrystalline solar cells with half-cut cell technology to improve electrical performance and power generation efficiency. This panel comes with pre-drilled mounting holes, solar connectors, and a junction box that allows easy and fast installation.
KEY FEATURES
Perfect for Curved Surfaces

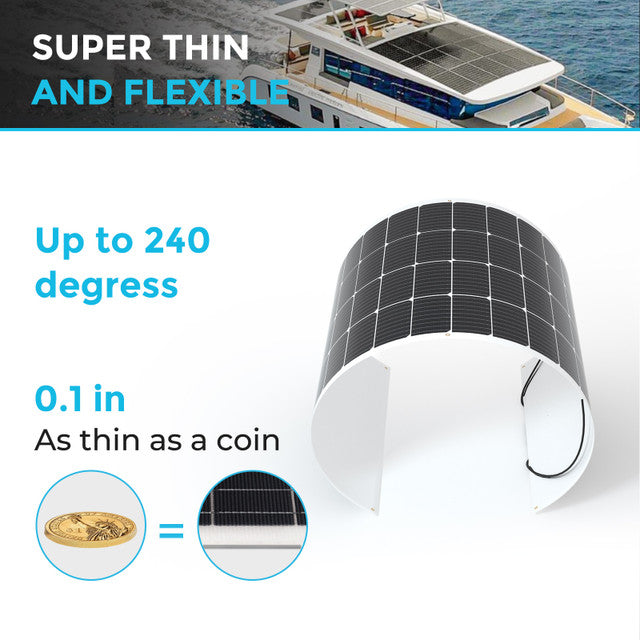

It works with most curved surfaces as it can be bent within 240 degrees.
Reliable & Durable
This Renogy Solar Panel can provide an average of 1000 Watt-hours of electricity per day (depending on sun availability). It offers 5-year material and workmanship warranty and has passed the CE test. This solar panel frame features a lightweight substrate and laminate, perfect for outdoor applications.
Extreme Weather Endurance
Withstand up to 5400 Pa of heavy snow load and up to 2400 Pa of high wind load. Provide excellent durability in a harsh environment.
Safety Protection
When there is no sun exposure, the diode prevents reverse current flow from the battery to the solar panels, to avoid current damage to your solar panels.
Ready for Installation
This Renogy solar panel comes with pre-drilled holes for quick installation. Besides, it can also be bonded to the surface by using silicone adhesive or velcro. The solar connector cables are 12AWG 27.6 in long without worrying about length limitations.
Waterproofness and Extendibility
The IP67 rated waterproof junction box and solar connectors ensure that water and dust will not enter during extended outdoor use. Cables attached on the back with Solar Connectors are ready for connection and extension.
SPECIFICATION
BUILT-IN COMPONENTS
Output Cables: 12 AWG (2.3 ft)
Cell Type: Monocrystalline（6.5x3.3）
Number of Cells: 72（18x4）
Junction Box: IP68
Solar Connectors: IP67
SPECIFICATIONS
Maximum Power at STC: 200W
Module Efficiency: 16.7%
Optimum Operating Voltage (Vmp): 20.1V
Open-Circuit Voltage (Voc): 23.9V
Optimum Operating Current (Imp): 10.02A
Short Circuit Current: 10.74A
Operating Temperature: -40°F to 176°F (-40ºC to +80ºC)
Maximum Series Fuse Rating: 15A
Maximum System Voltage: 600V DC
Certifications: ETL Listed [UL-458]，CE and RoHS compliant，FCC Class B Part 15 Compliant，ISO9001

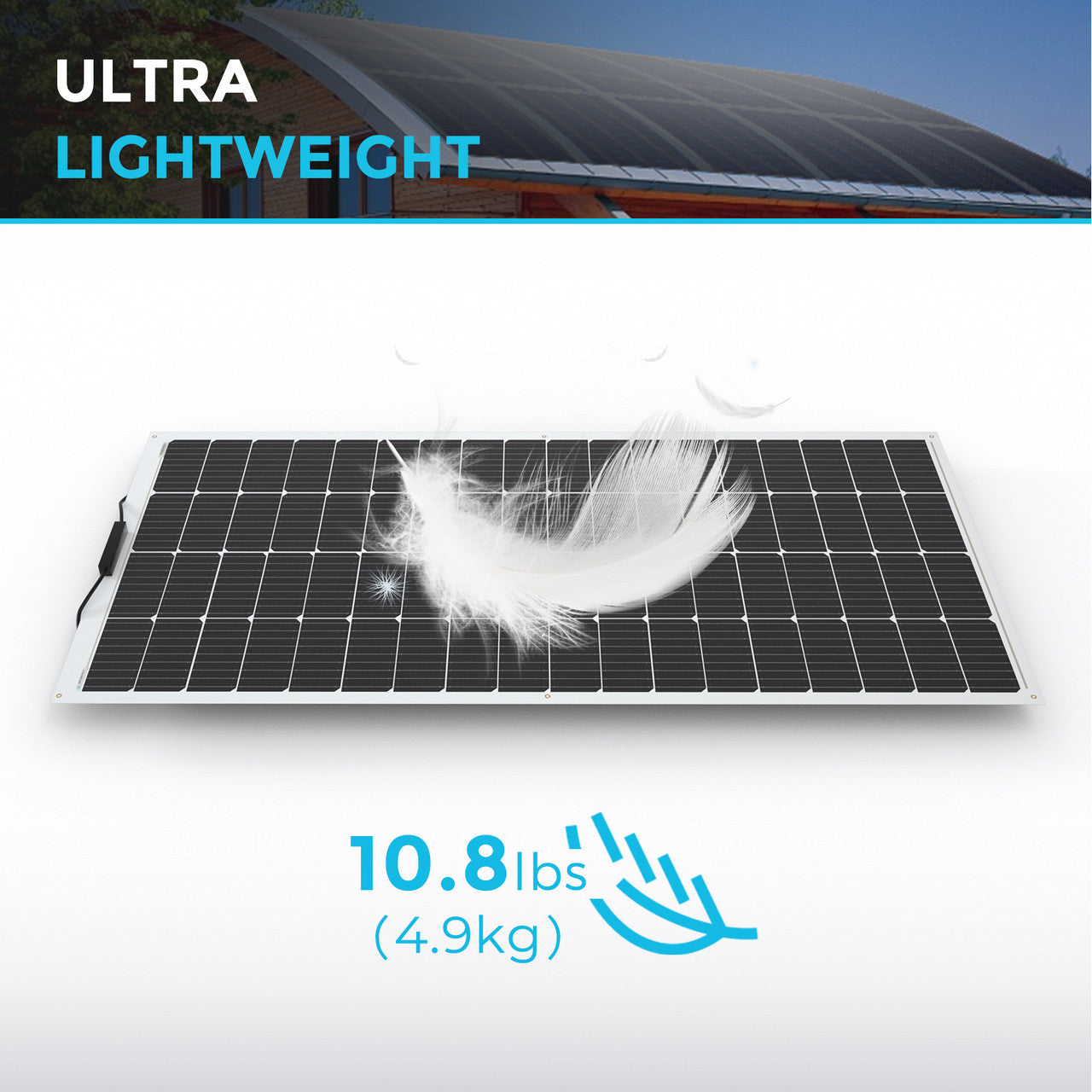

Weight: 4.9 kg / 10.8 lbs

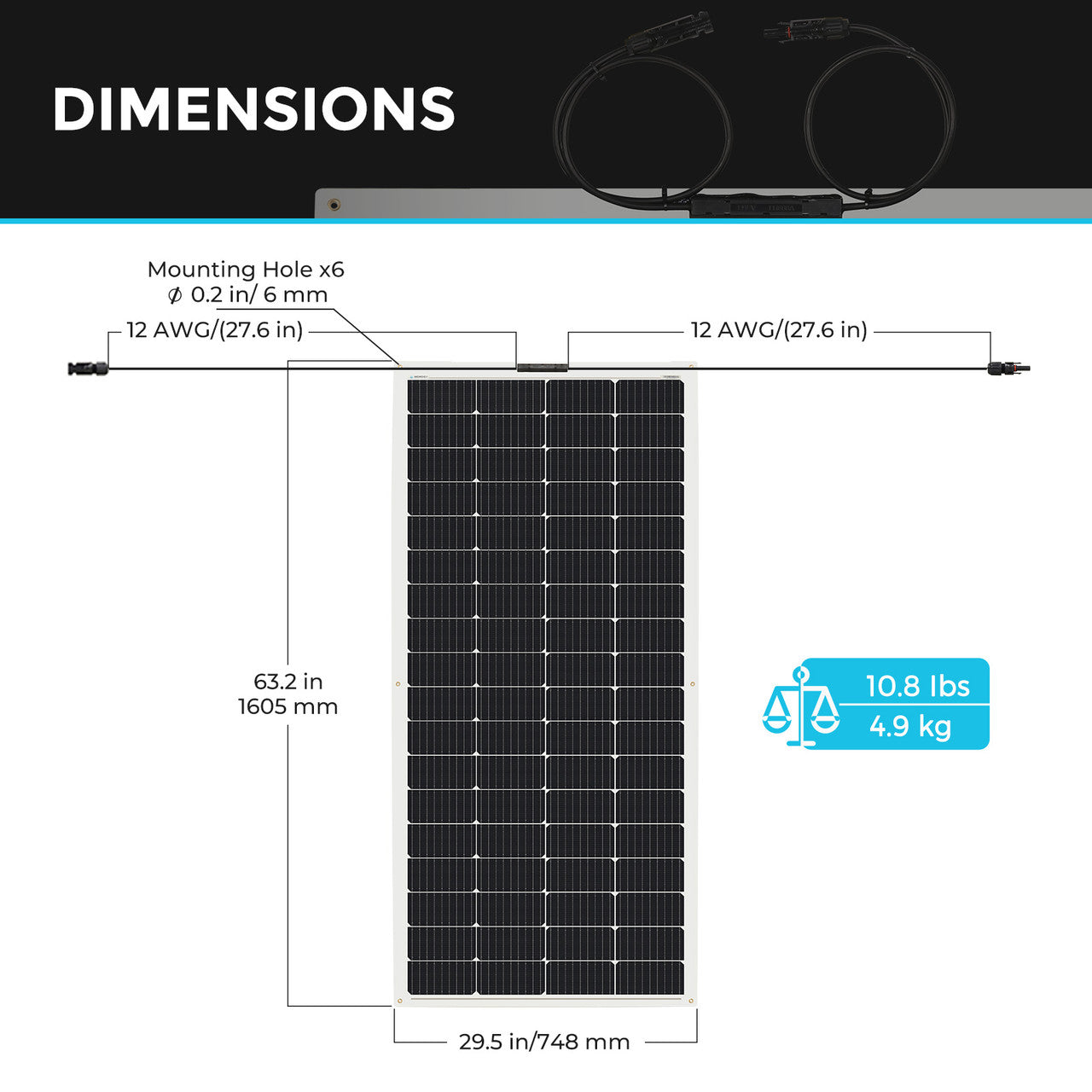

Dimensions: 1605 x 748 x 3 mm (63.2 x 29.4 x 0.1 in)
