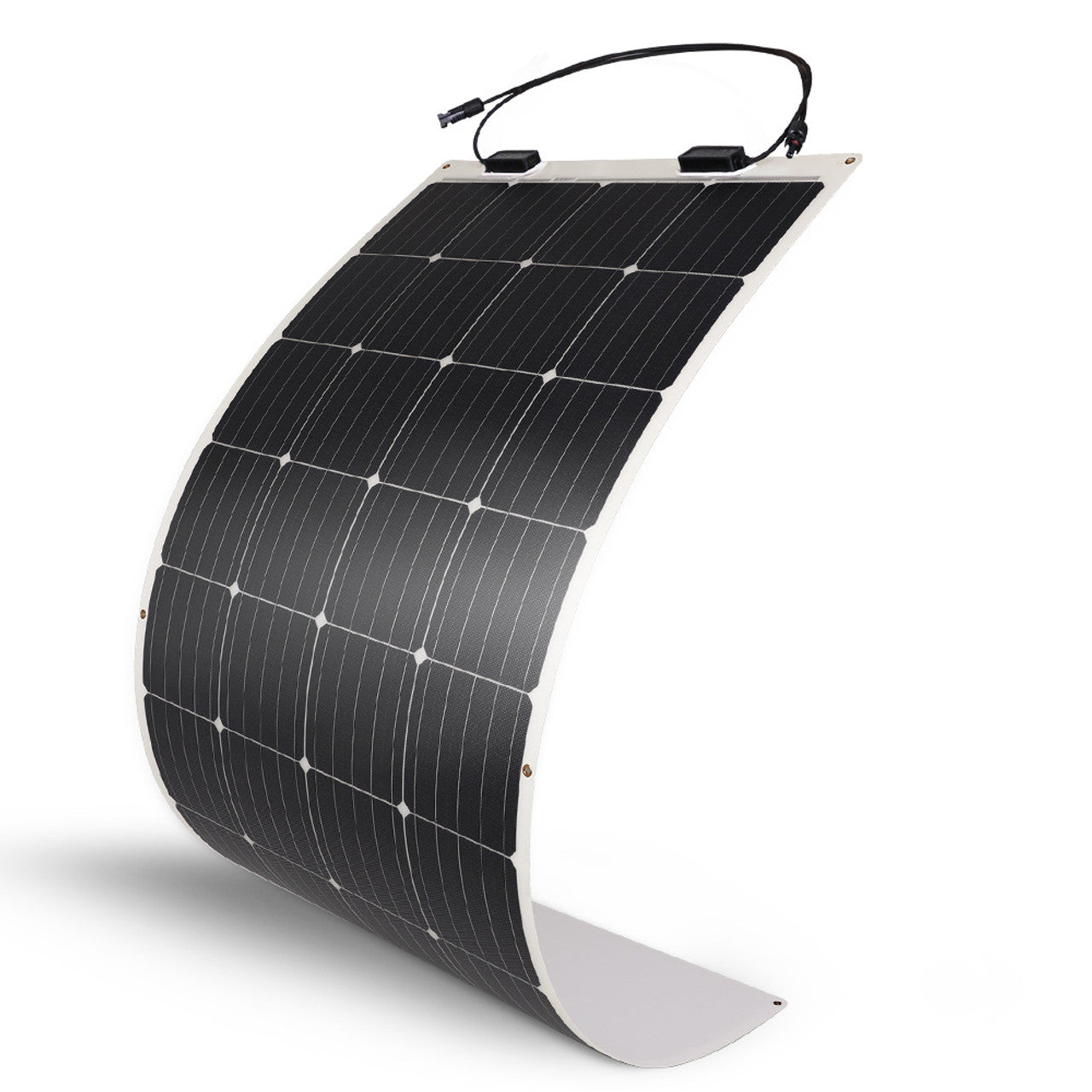

Renogy 175 Watt 12 Volt Flexible Monocrystalline Solar Panel

Renogy 175 Watt 12 Volt Flexible Monocrystalline Solar Panel

Fast Shipping | Easy Returns | No Sales Tax

$349.99 USD
$496.99 USD $349.99 USD
Sale Sold out
  • Free Shipping: 2-5 Day Delivery
  • Phone Support (888) 886-1488
  • Lowest Price Guarantee

Renogy Collection - Best Solar Generators, Power Stations & Solar Panels – Outbound Power

DESCRIPTION

Lightweight, thin, and capable of flexing up to 248 degrees, this Renogy 175W Flexible Solar Panel is your perfect solution for a power-independent journey! IP68 junction box and IP67 solar connector, excellent weatherproof performance, perfect for marine and outdoor use. At a weight of 6.2 lbs, this flexible solar panel weighs 70% less than its rigid counterpart, making it an ideal alternative for load-sensitive structures and uneven surfaces. Perfect for RVs, campers, boats, and many others. If you want to keep the speed of your vehicles and enjoy off-grid power freedom, this is your best solution.

Mounting Recommendation: Modules must be mounted using silicone structural adhesive on the backside of the panel, grommets are only to be used for non-mobile applications. For detailed installation methods, please consult a local contractor for guidance.






KEY FEATURES

Extremely Flexible

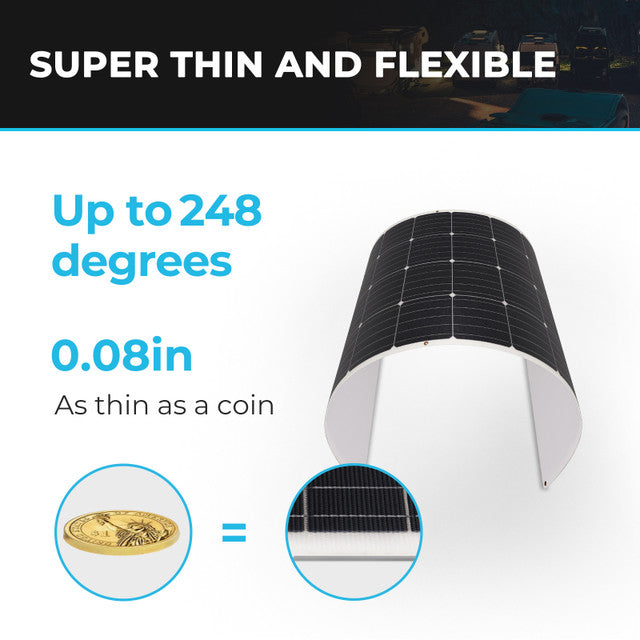

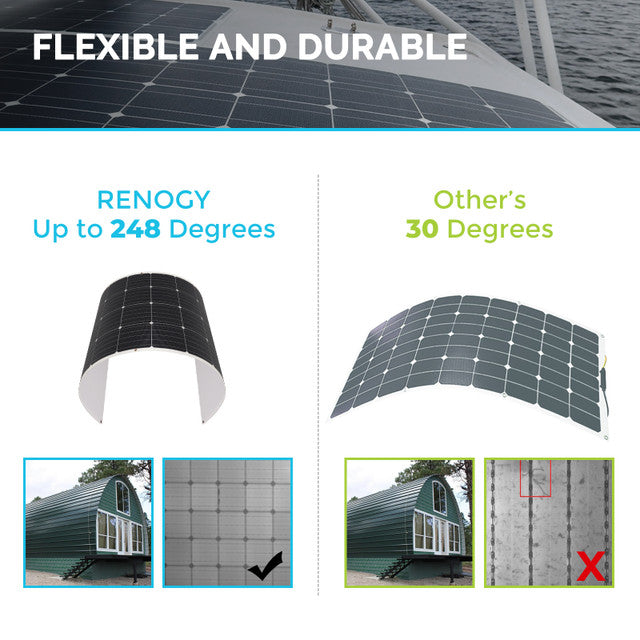

This 175W solar panel can flex up to 248 degrees, minimizing the mounting and even issues for a curved surface. Where rigid panels are inconvenient to install, get this one.
Ultra Lightweight

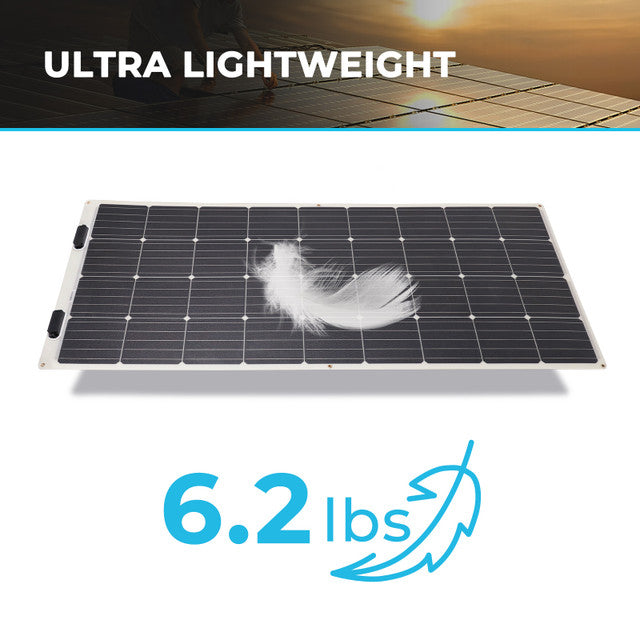

Light as 6.2 pounds, this 175W flexible panel weighs 70% less than its rigid counterpart. Reduce your burden on the road, embrace new possibilities.
Super Thin Lamination
This Renogy 175W flexible panel is only 0.08 inches thick! It is about 95% thinner than its rigid counterpart, ideal for a stealthy solar setup.

Weather Resistance

Designed to withstand extreme wind of up to 2400Pa and snow loads of up to 5400Pa. Reliable in harsh environments. Back up your brave journey.

Easy Installation

Six metal reinforced mounting holes, simple to install. You can also mount it with silicone structural adhesive.






Weather Resistance

Withstands high winds (2400 Pa) and snow loads (5400Pa). Reliable in harsh outdoor environments, ensures longer lifespan. Fearless of extreme climates, backup your brave journey.



SPECIFICATION



BUILT-IN COMPONENTS

Output Cables: 12 AWG (2.30 ft)

Cell Type: Monocrystalline (6.17 x 6.17 in)

Number of Cells: 36 (4 x 9)

Junction Box: IP68

Solar Connectors: IP67



SPECIFICATIONS

Maximum Power at STC: 175W

Module Efficiency: 17.3%

Optimum Operating Voltage (Vmp): 19.5V

Open-Circuit Voltage (Voc): 23.9V

Optimum Operating Current (Imp): 8.98A

Short-Circuit Current (Isc): 9.50 A

Operating Temperature: -40°F to 185°F (-40ºC to +85ºC)

Maximum Series Fuse Rating: 15A

Maximum System Voltage: 600V DC (UL)

Certifications: CE, ISO

Weight: 6.2 lbs (2.8 kg)

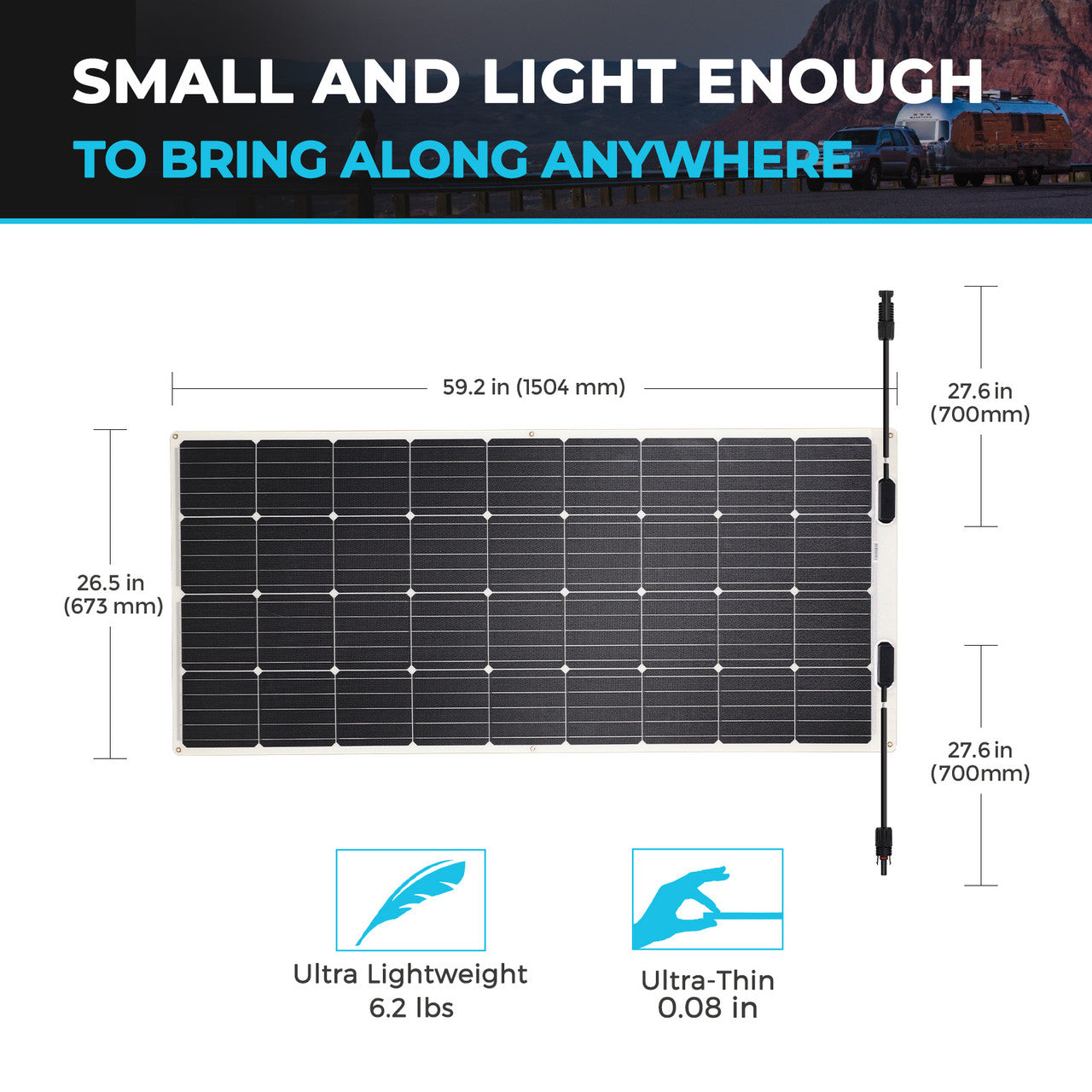

Dimensions: 59.2 x 26.5 x 0.08 in (1504 x 673 x 2 mm)
