The Pinnacle Of E-Bike Technology And Performance
The Apex is the highest point, the summit, and the top of the mountain. QuietKat’s most popular electric fat bike features an integrated battery, and mid-drive motor system, and features top-level components.
QuietKat’s most popular electric fat bike features an integrated battery and motor system and is equipped with top components including adjustable air suspension, 4-Piston Tektro hydraulic disc brakes, and a wide-range 9-speed SRAM drivetrain. The Apex uses a 12mm thru-axle on the rear and sealed bearings in both front and rear hubs for maximum performance and capability. The Apex is the pinnacle of QuietKat’s hardtail electric bike lineup.

Features:

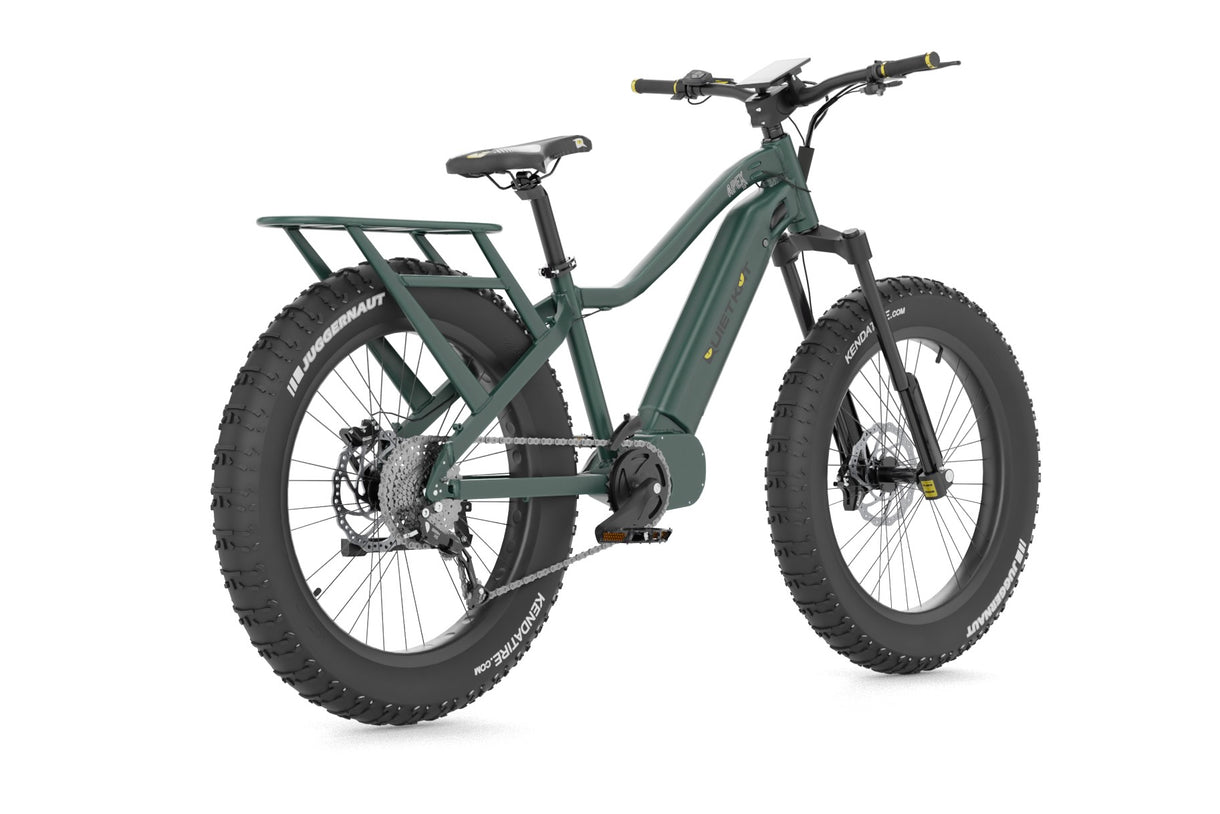

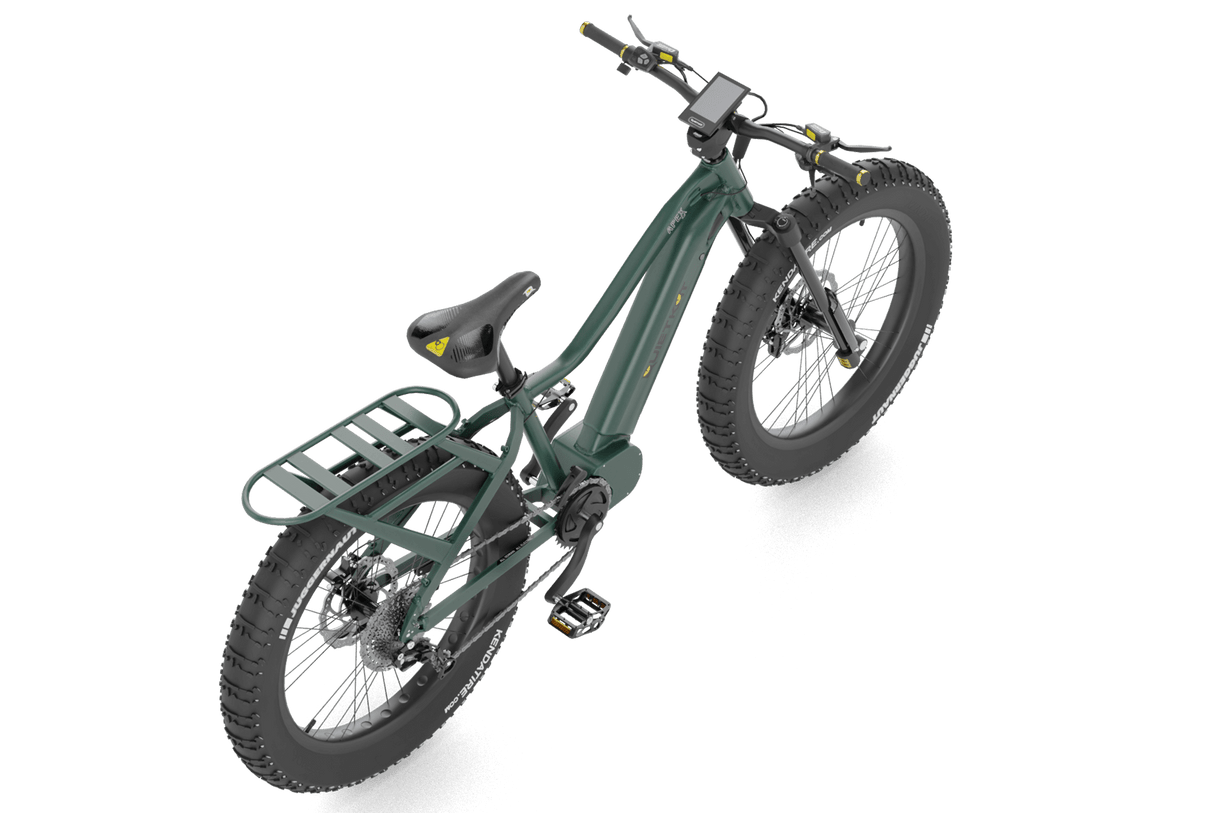

The Apex includes an all-new integrated pannier rack, molded to the frame for maximum strength and capability. Attach anything you need to bring for your adventure including pannier bags, bow/tool holders, trailers, and much more.
-
Smooth operation: 12mm thru-axle on the rear and sealed bearings in both front and rear hubs allow for smooth operation in all weather conditions.
-
Versatile motor options: The Apex is available in 1000W and 750W mid-drive motor options which utilize all the mechanical bicycle gears.
-
9 Speeds: A wide range 11-36T cassette and SRAM 9-speed drivetrain provides a full range of gearing for conquering steep hills and rough terrain
-
Advanced brakes: Tektro 4-Piston hydraulic brakes provide confidence and control when navigating steep descents on rugged terrain.
-
Easy transport: The Apex is our ideal electric bike for hunters to transport heavy gear, capable of carrying up to 325 pounds, you can bring everything you need.
-
All-terrain tires: Equipped with quality all-terrain fat tires, that get you where you need to go.

-
Top-quality components: QuietKat’s top-level component kit includes an adjustable 150mm air suspension, 4-Piston Hydraulic Brakes, and SRAM 9-speed drivetrain.
-
Advanced motor power: Powered by a mid-drive motor paired with wide-range gearing provides maximum torque for climbing steep hills and mountain trails.
-

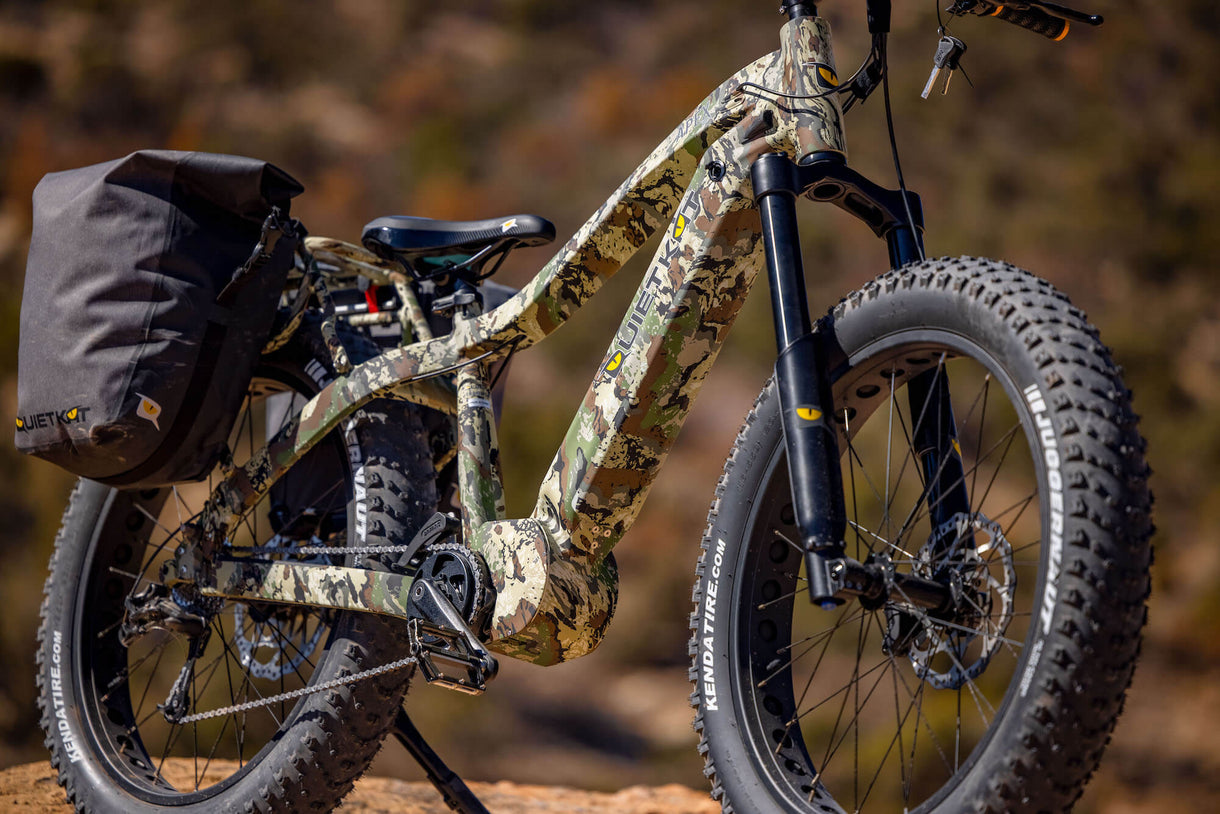

Carry heavy gear: The Apex is compatible with our two-wheeled trailer as well as our single-wheeled trailer to bring all your gear along for the ride. The heavy-duty pannier rack system allows hunters and overlanders to carry heavy gear more easily.
-
Multiple colors and sizes: The Apex has various new color options and a 15.5" frame option for smaller riders.
-
Multiple wheel sizes available: Ability to switch to a 29" standard mountain bike tire set for even more flexibility.
-
Rider flexibility: Multiple sizes available, including small, medium, or large in 15, 17, or 19-inch frame sizes.
- Multiple Modes: Ride in confidence with flexible modes to meet any style of riding including Eco-Assist, Sport-Assist, Throttle, and Walk Assist.

Specification:
Motor: 1000W | 750W (Mid-Drive)
Battery: 16AH/48V | 768 Wh | 12 lbs
Range: Up To 64 Miles Per Charge*
Display: Customizable LED
Modes: 5 Levels of Eco-Assist, 5 Levels of Sport-Assist, Throttle, Walk Assist Mode
Throttle: Removable Thumb Throttle
Gears: SRAM 9-Speed
Brakes: Tektro 4-Piston Hydraulic
Suspension: 150mm Inverted Air-Suspension Fork
Tires: 26” x 4.5” (MD,LG) | 24" x 4.0" (SM)**
Weight: 71 lbs
Load Capacity: 325 lbs.

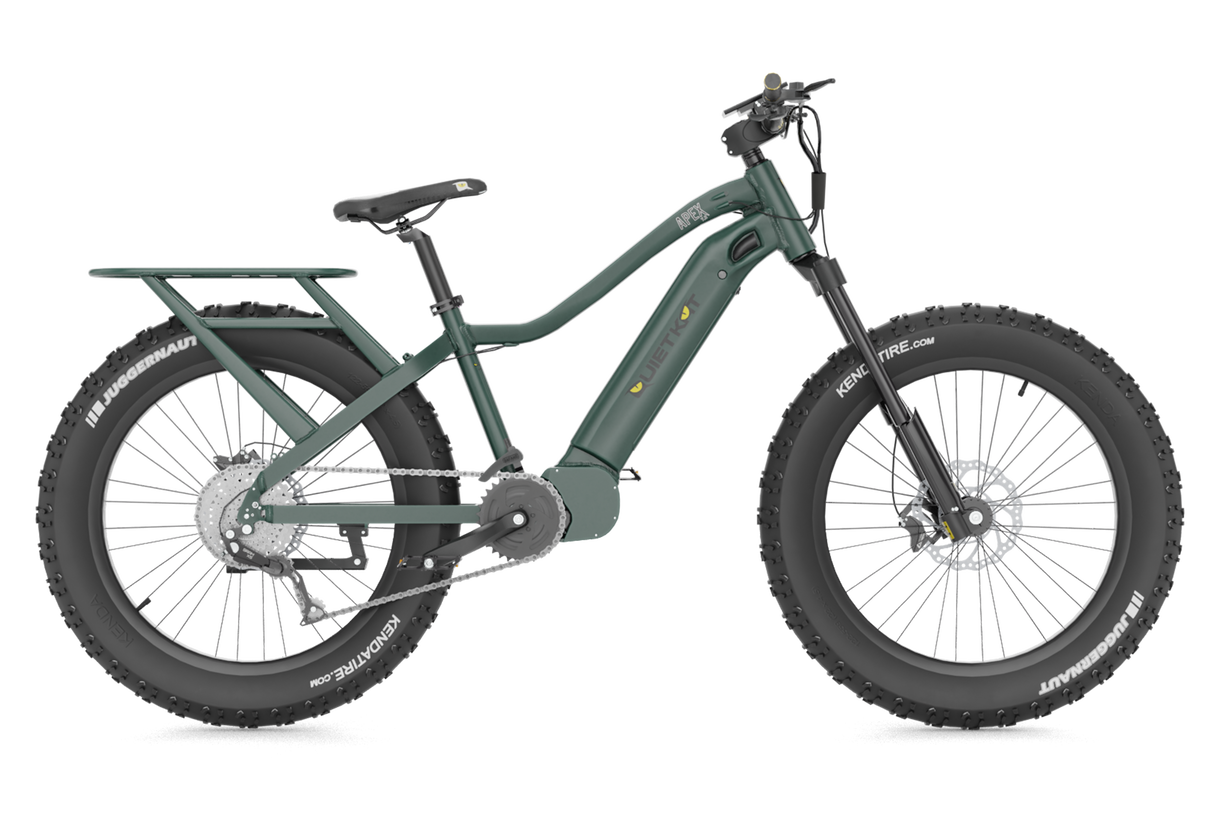

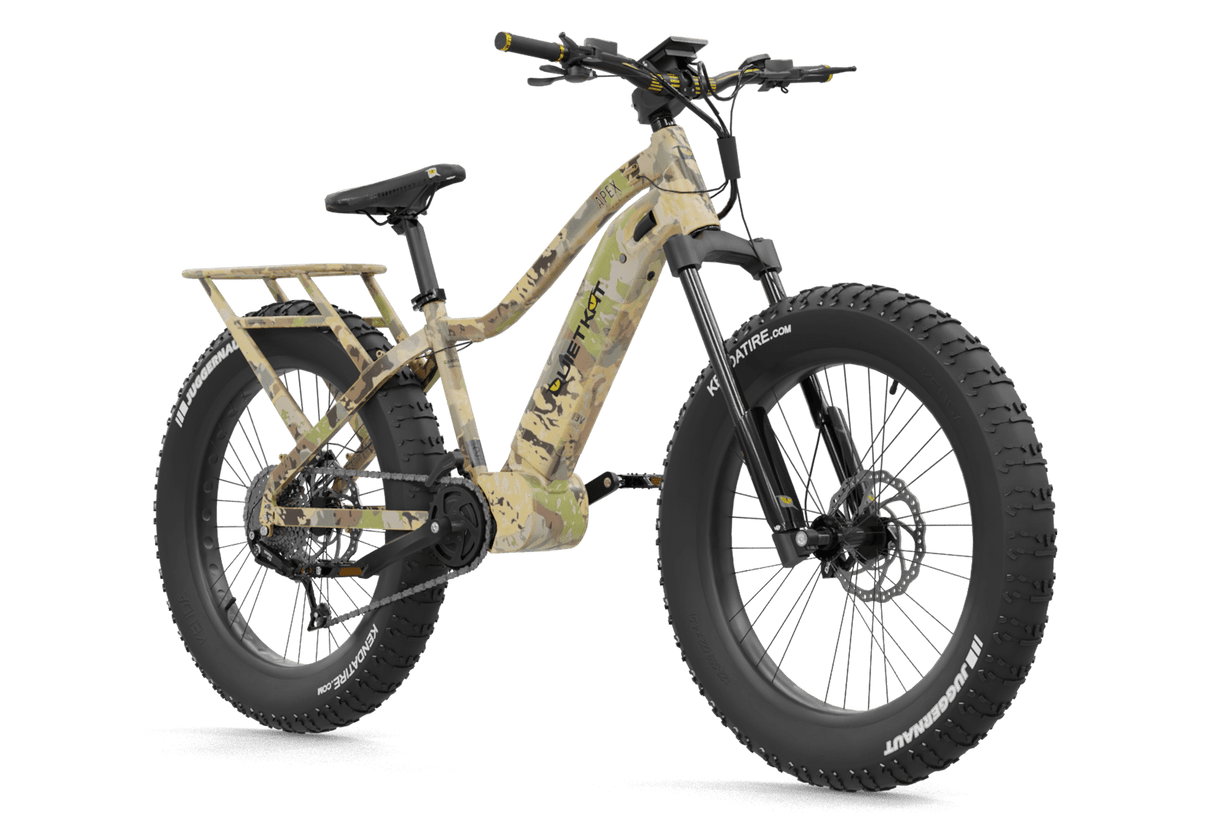

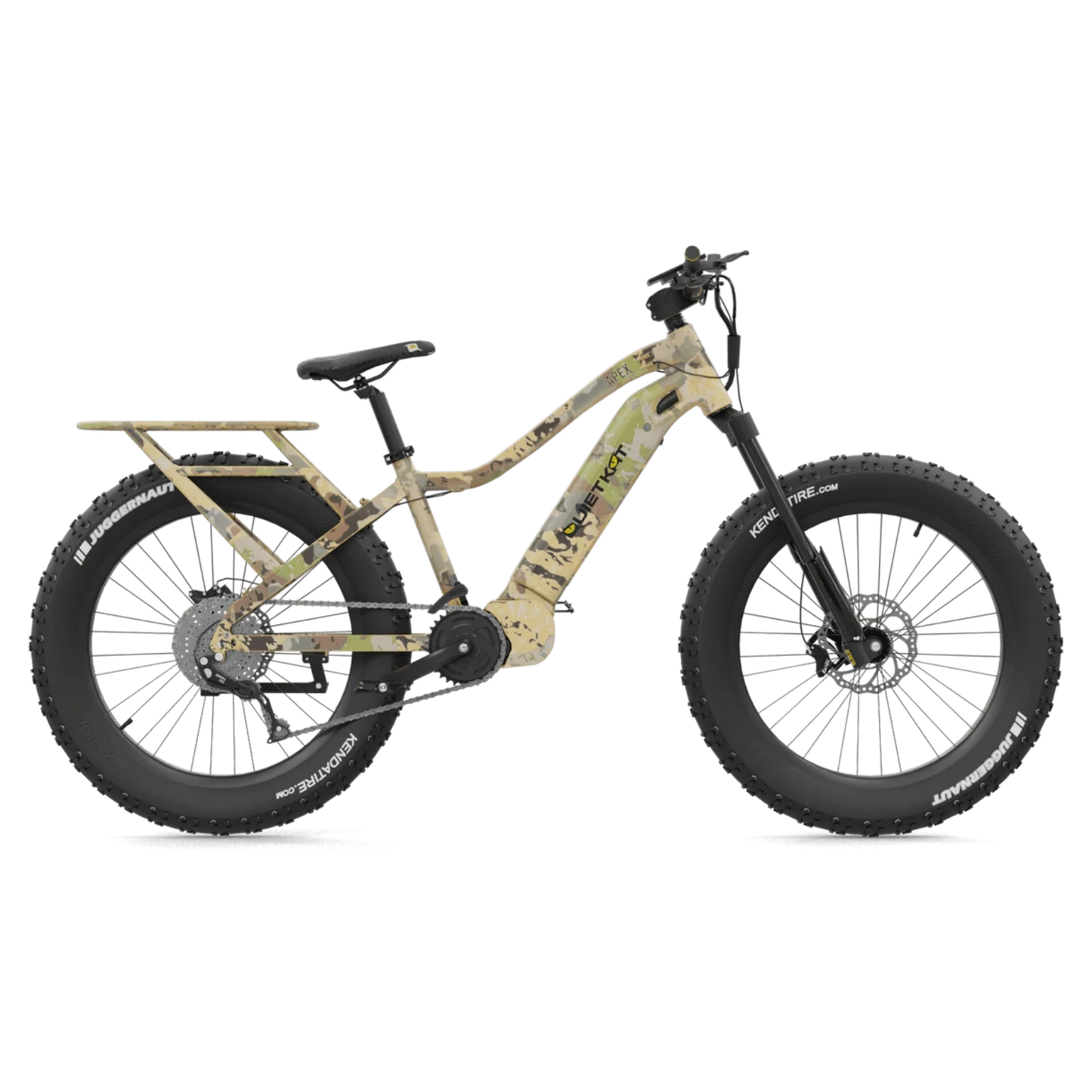

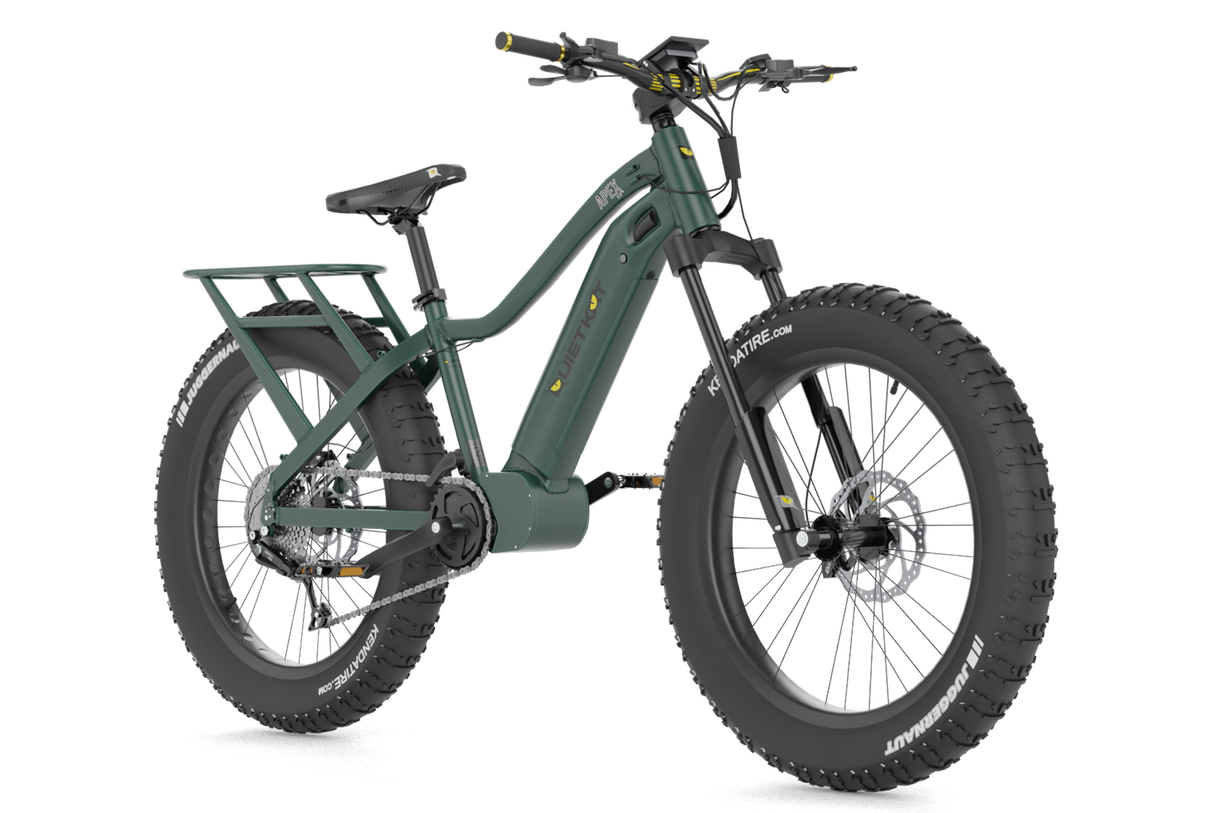

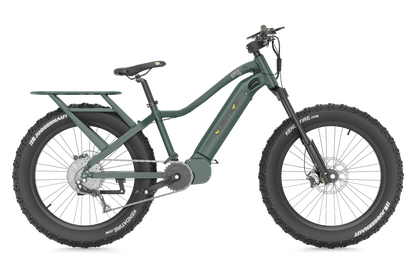

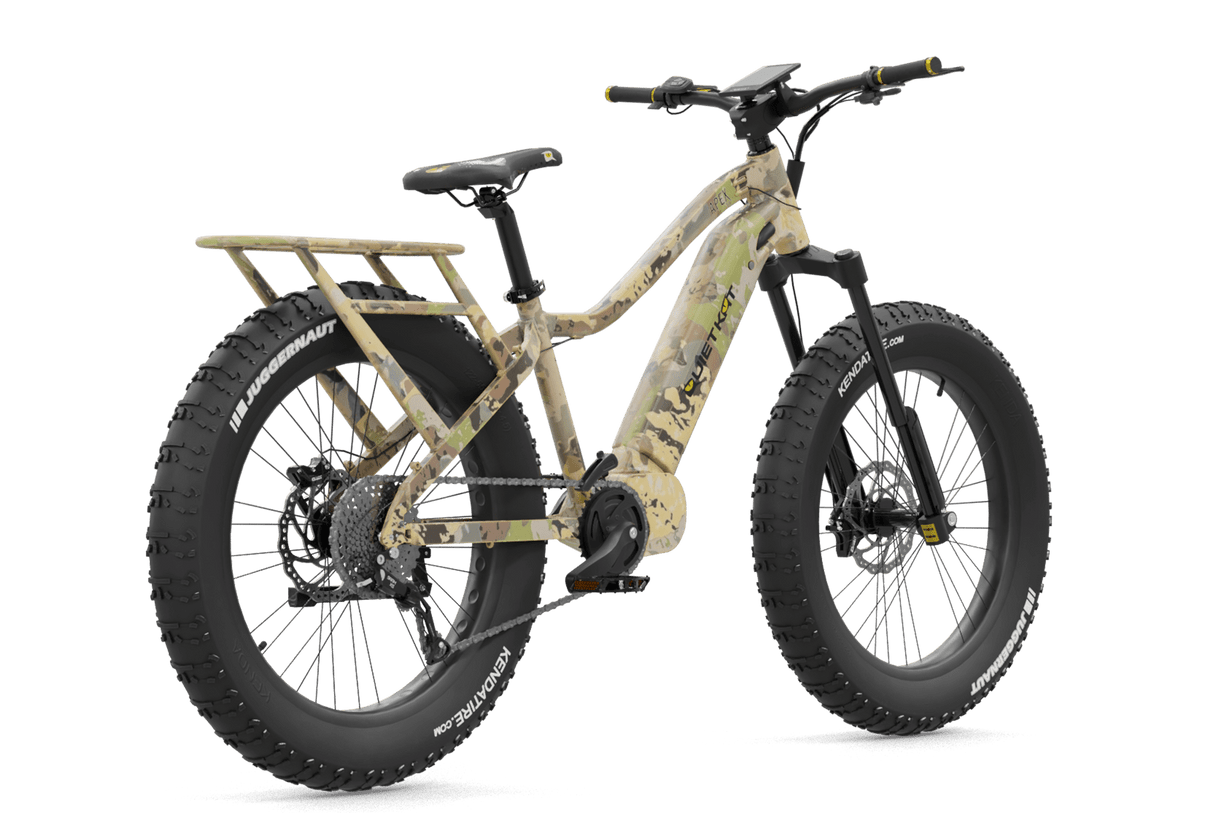

Color: Veil Caza Camo | Evergreen
Sizes: S | M | L
Speed: Unrestricted (1000w) | 20 mph (750w)
Class:1 | 2 | Unclassified
