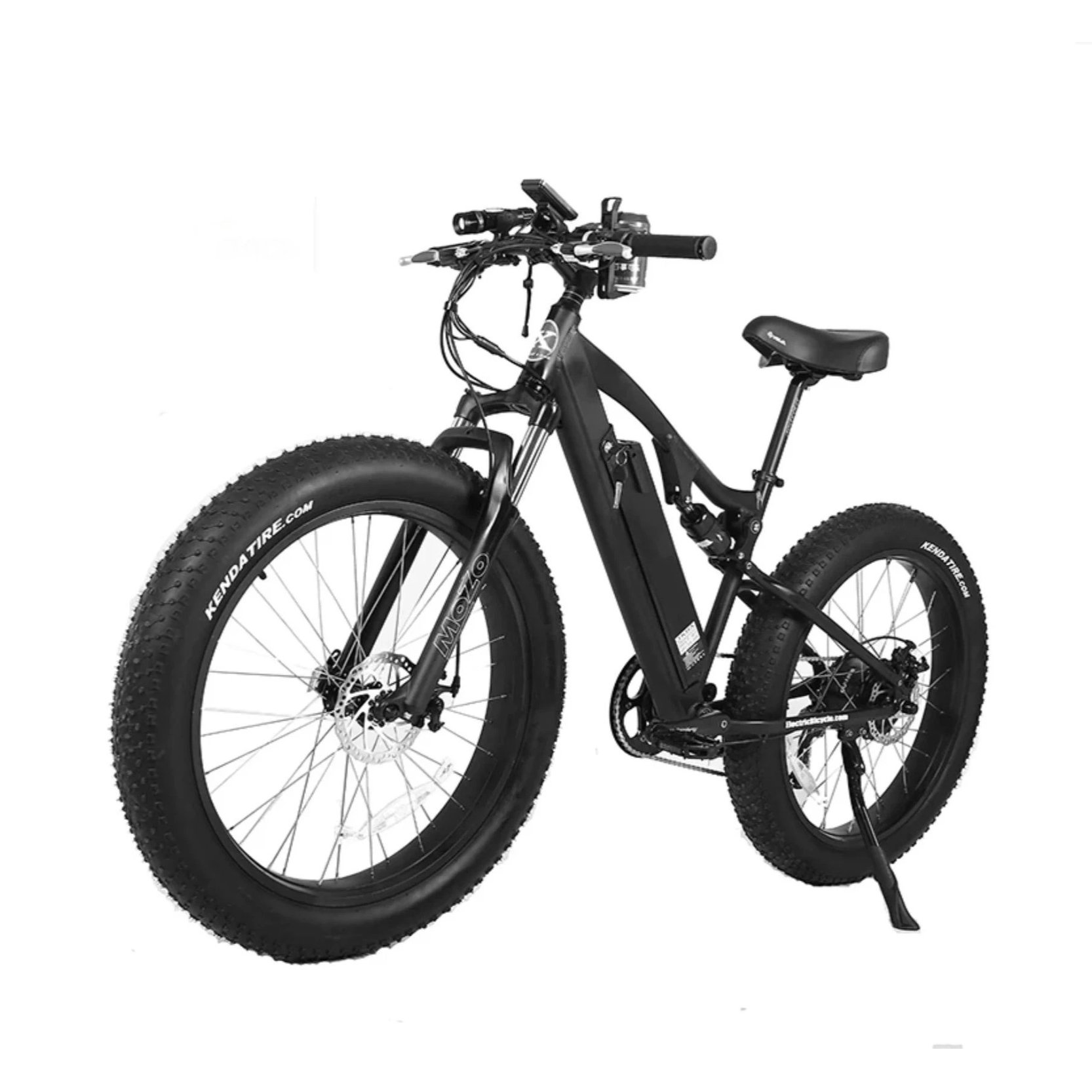

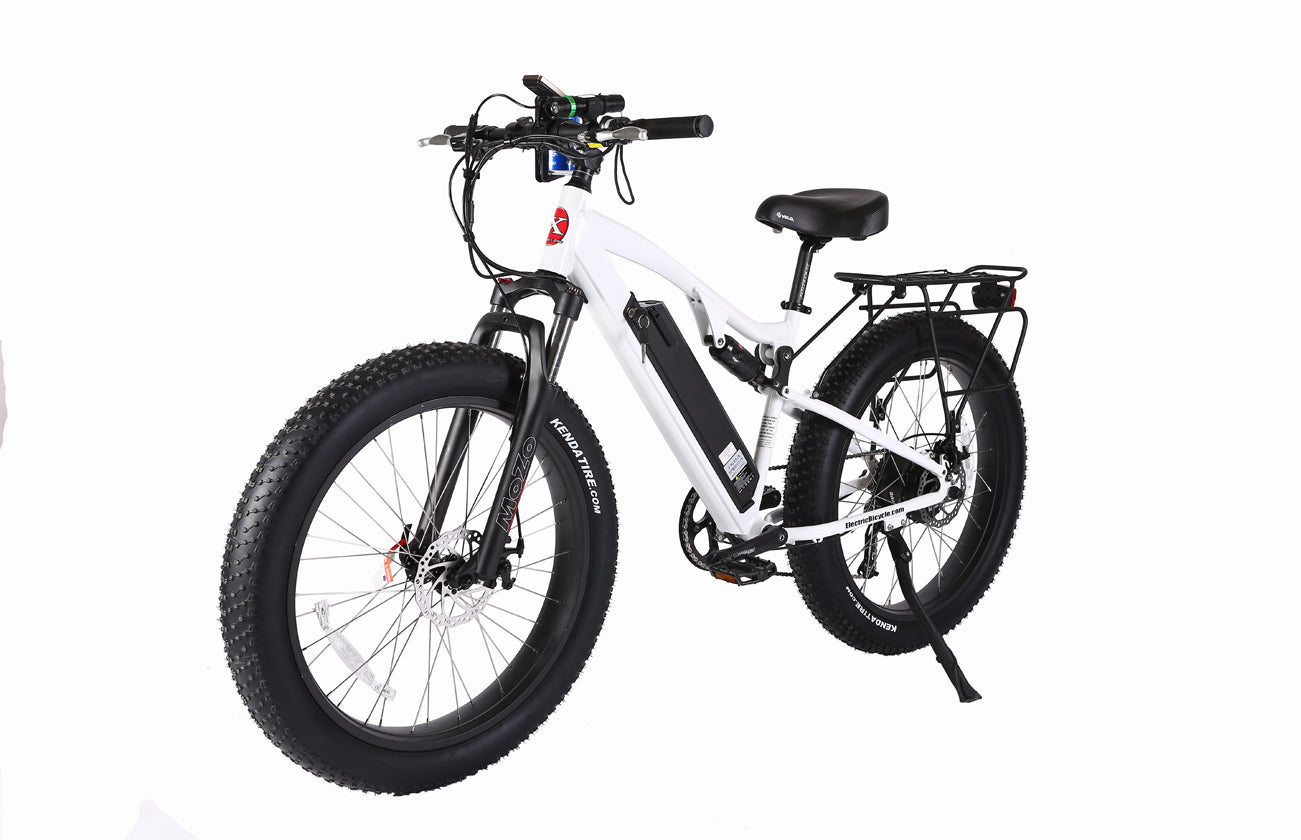

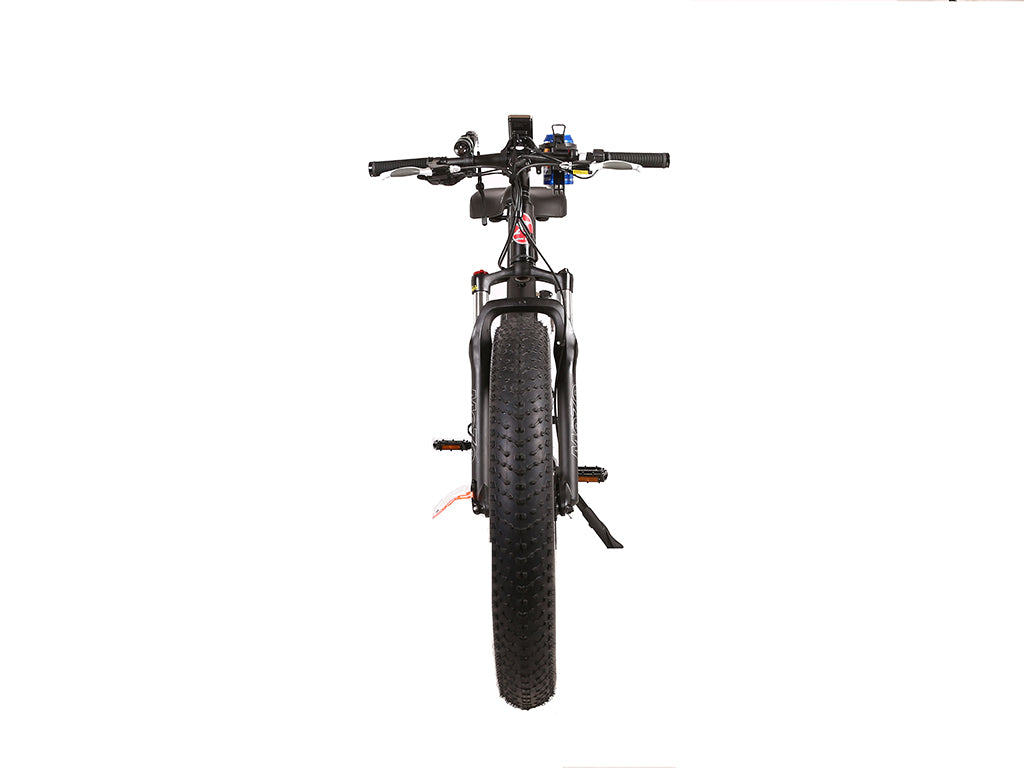

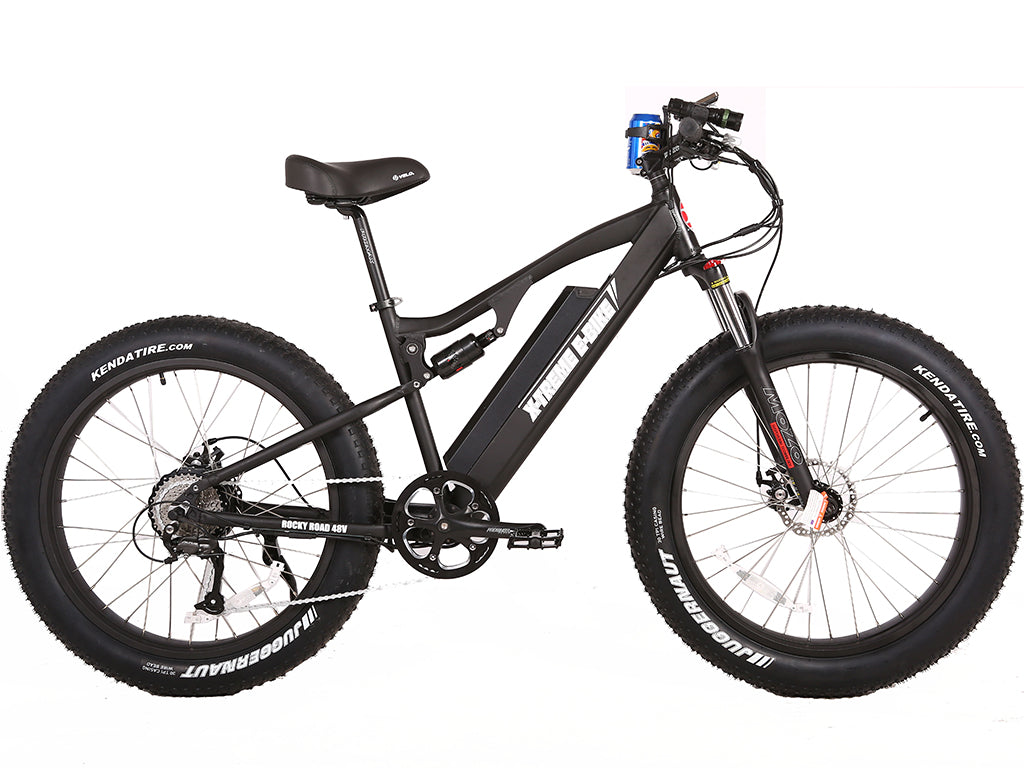

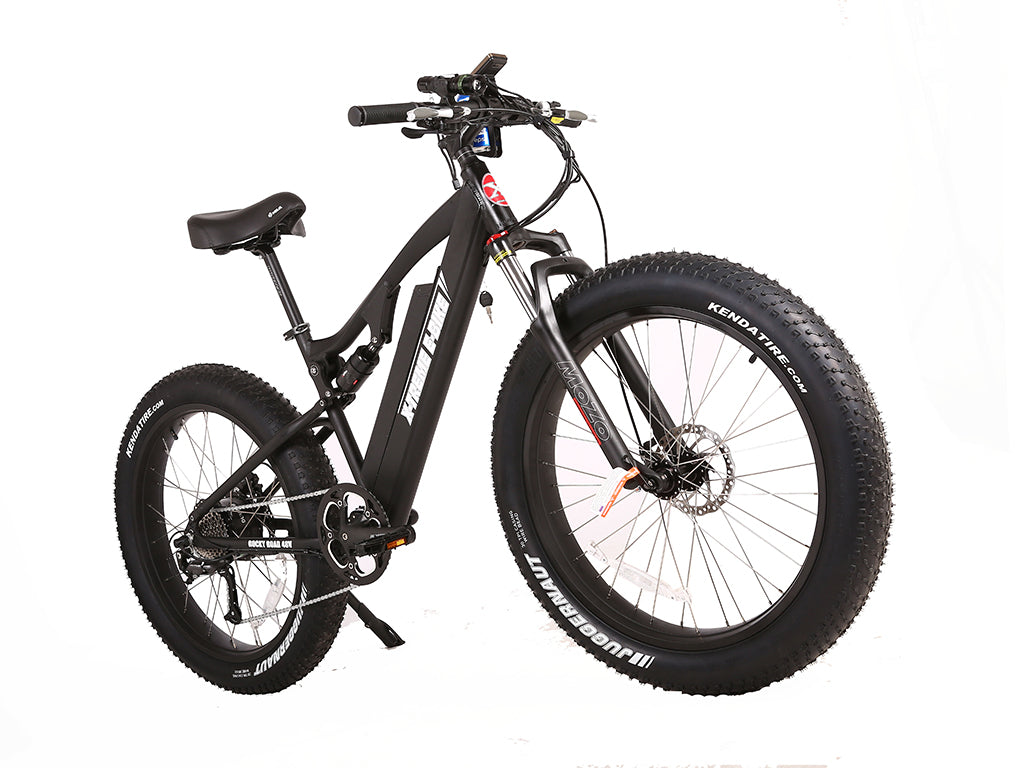

X-Treme Rocky Road 48 Volt 500W Fat Tire Full Suspension Electric Mountain Bicycle

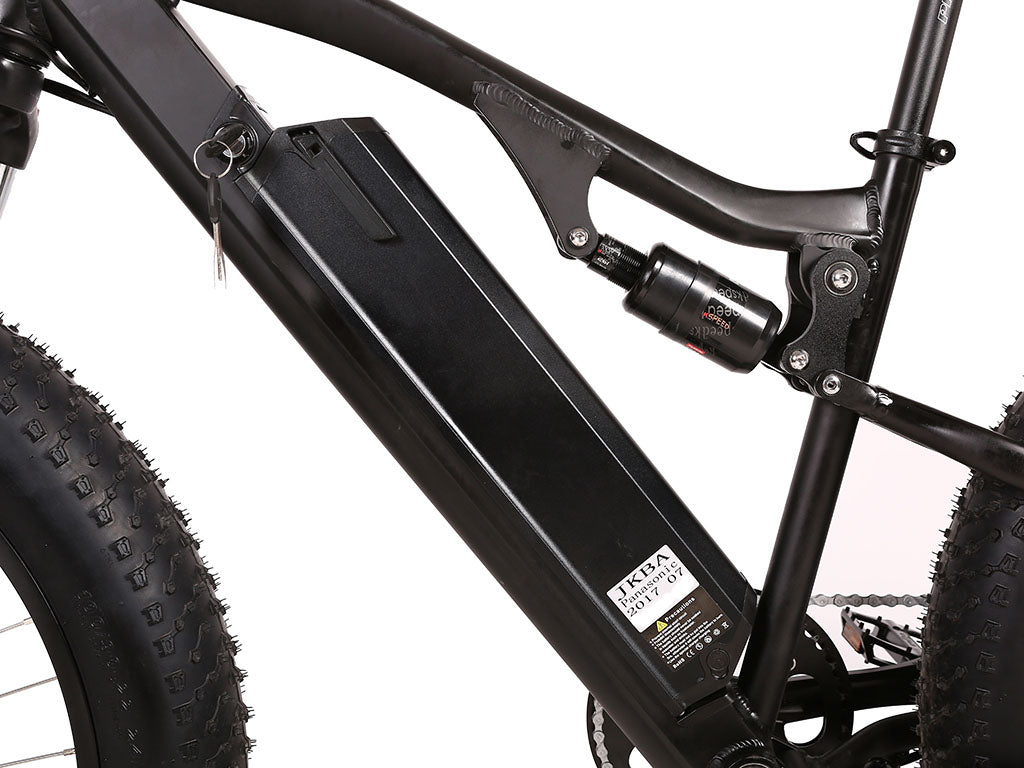

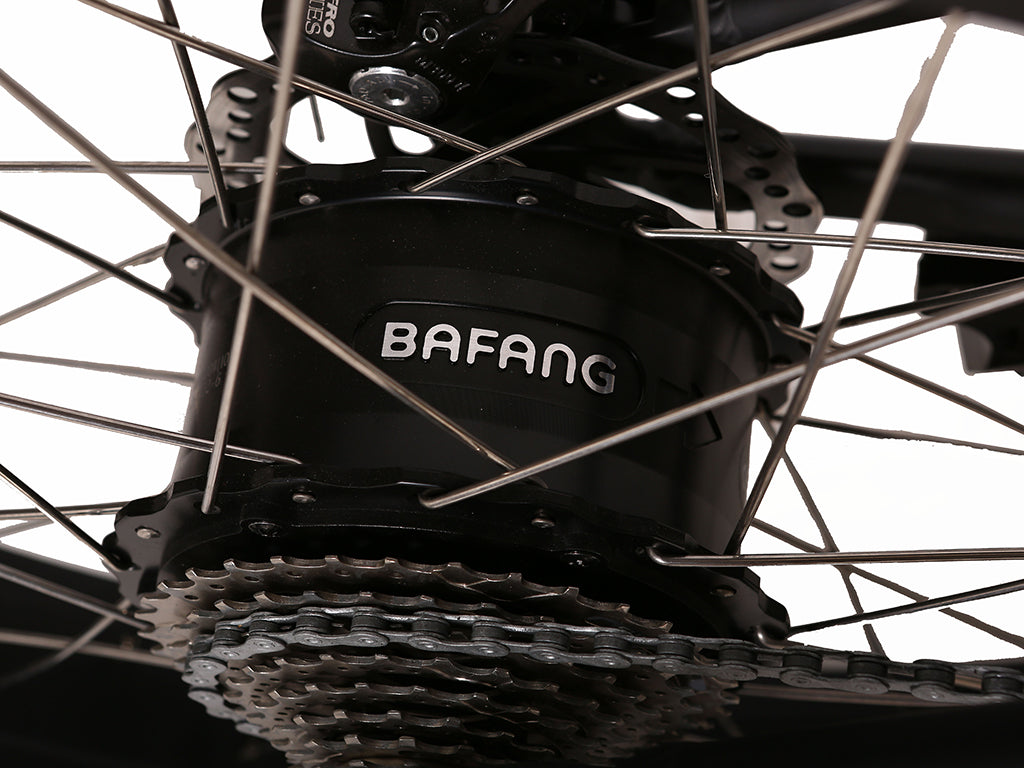

The Rocky Road 48 Volt Lithium Powered Electric Fat Tire Mountain Bicycle is a Lithium Battery powered Electric Bicycle cranking out 500 Watts from the Bafang High Torque Zero Resistance Clutch Motor. This bike features a lightweight, compact lithium LiPo4 48 volt 10.4 Ah integrated battery pack providing a considerable amount of power greater than our 24 volt or 36 volt models.

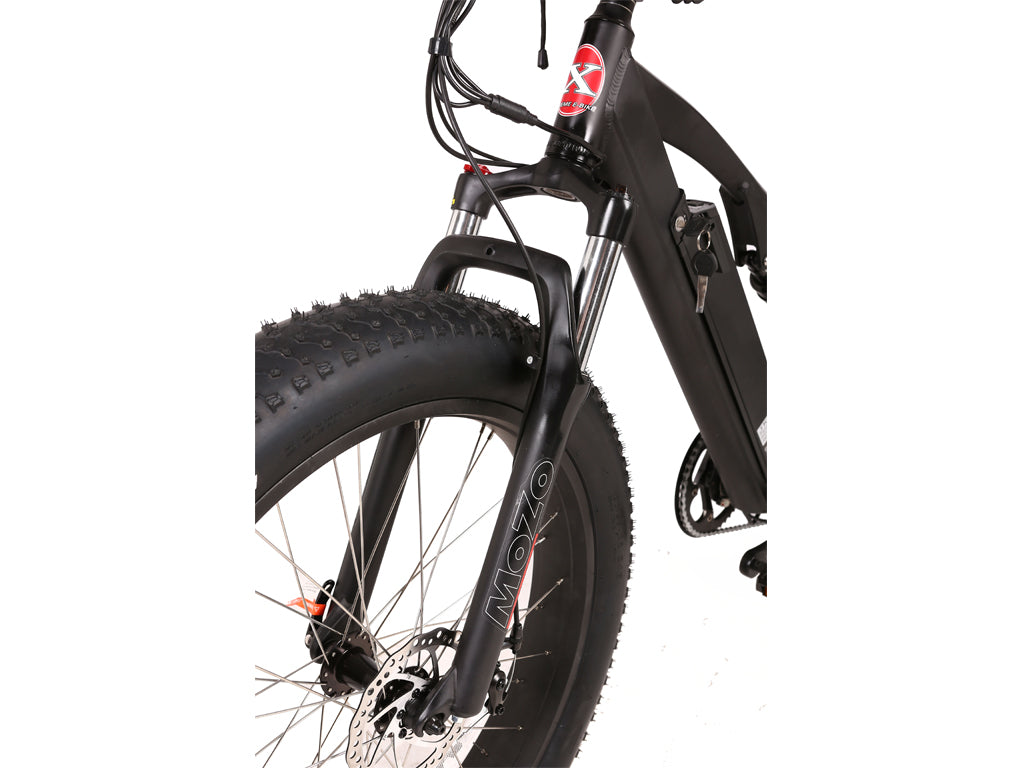

This bike comes with everything Aluminum - every bolt, every nut, every nipple, every spoke. That means no rust! The 100% hand welded lightweight aluminum frame bicycle has Atlus Shimano 9-Speed Gears & Shifting System, oversized MOZO Front Hyrdraulic Suspension & KS Rear Shock Suspension, aluminum rims with quick release axle on the front and a water proof quick disconnect on the rear and oversized Kenda 26 x 4.0 tires.

The Rocky Road comes standard with a 48 Volt 10. Ah Lithium LiPo4 battery. We now offer the option to purchase an upgrade to your Rocky Road to ship with a 48 Volt 17 Ah Lithium LiPo4 which allows for an increased 60-65% distance. This means you can get up to an additional 115 per charge (*depends on rider weight and terrain).
The Rocky Road comes equipped with the King Meter 5 Speed Smart Power Assist System (SPAS) with a USB Phone Charging Port. The electronics of the X-Treme Electric Bicycle are controller via rider input on the LCD screen attached to the handlebars. Smart PAS with 5 speeds will enable the bike to operate nearly twice as efficient as a non-smart assist e-bike, because you select the power consumption (speed controls 1-5 setting) on the LCD during your ride. This feature will allow your Rocky Road 48 Volt to possibly reach or get as far as 70+ per charge when using low SPAS while always pedal assisting on flat ground under perfect conditions with a light weight rider. The LCD also indicates Speed, Distance and Battery Life.
Rear Rack Sold Separately For The Rocky Road

The Rocky Road 48 Volt Lithium Powered Electric Mountain Bicycle is faster than any model we sell. It has been tested climbing a 5-7% mountain grade continuously for 45 minutes while having to slow down for hair pin turns.
Front & rear Tektro disk brakes are standard on the Rocky Road 48 Volt Electric Mountain Bicycle along with true VELO Brand Hand Grips & Mountain Bike Seat.
Charger Included
ROCKY ROAD SPECS
Measurement: Max Seat Height = 40.5" Inches / Min Seat Height = 32.5" Inches / Handle Bar Height = 41.75" Inches
Power |
Electric |
Watts |
500 Watts |
Amps |
10.4AH Integrated Lithium Battery (17AH Optional Battery Pack) |
Volts |
48 Volts |
Battery |
48 Volt LiPo4 Lithium (lightweight) |
Drive System |
Chain Driven by Rear Hub Motor or Pedal Power |
Per Charge |
As far as Up To 50 Per Charge Using Low PAS & Flat Terrain While Pedal Assisting (up to additional 115 per charge w/ 48v/17Ah battery)
|
Tire Size |
Kenda Mountain Tire & Tube - 26 x 4 Inch on Aluminum Wheels |
Motor |
500 Watt Zero Resistance Rear Hub Motor With Clutch |
Controller |
48 Volt 15 Amp Sealed Smart Controller
|
Braking System |
Tektro Disk Brakes |
Throttle Type |
Variable Speed Thumb Throttle - SPAS Power Assisted - Pedal Power |
LCD Display |
King Meter LCD Smart PAS Digital System With USB Phone Charging Port |
Cargo Rack |
Aluminum Rear Carry Rack (Sold Separately)
|
Frame Type/Size |
6061-T6 Temper Aluminum Alloy - Very Lightweight |
Forks |

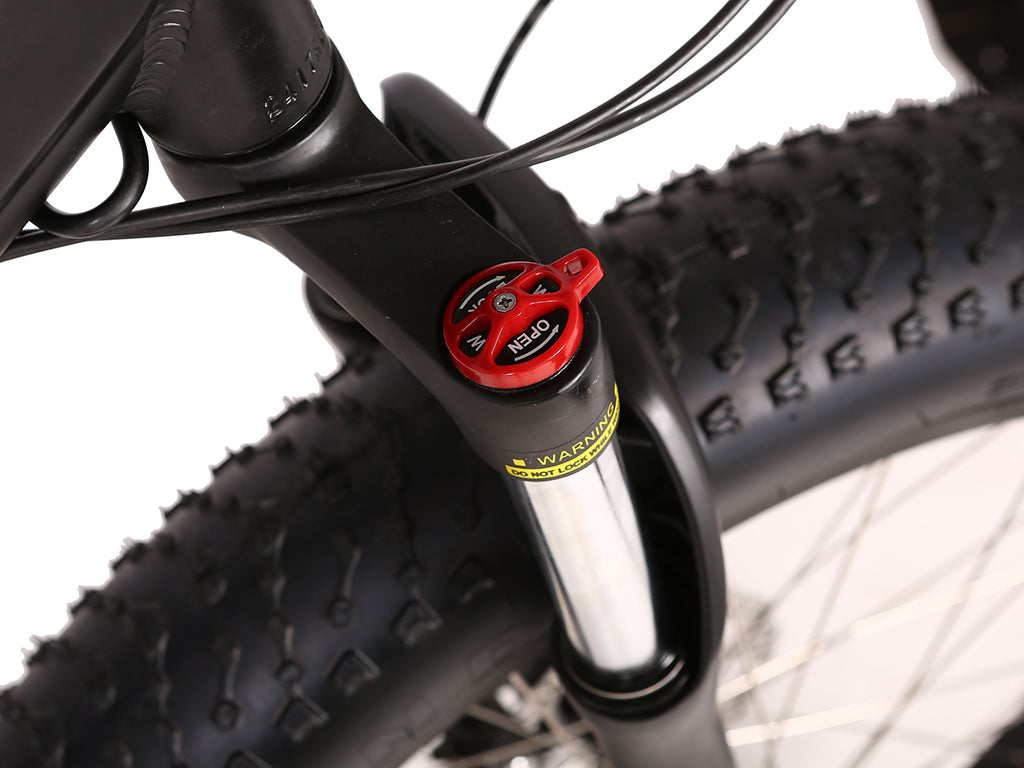

SA Suntour® XCM Hydraulic Front Forks |
Suspension |

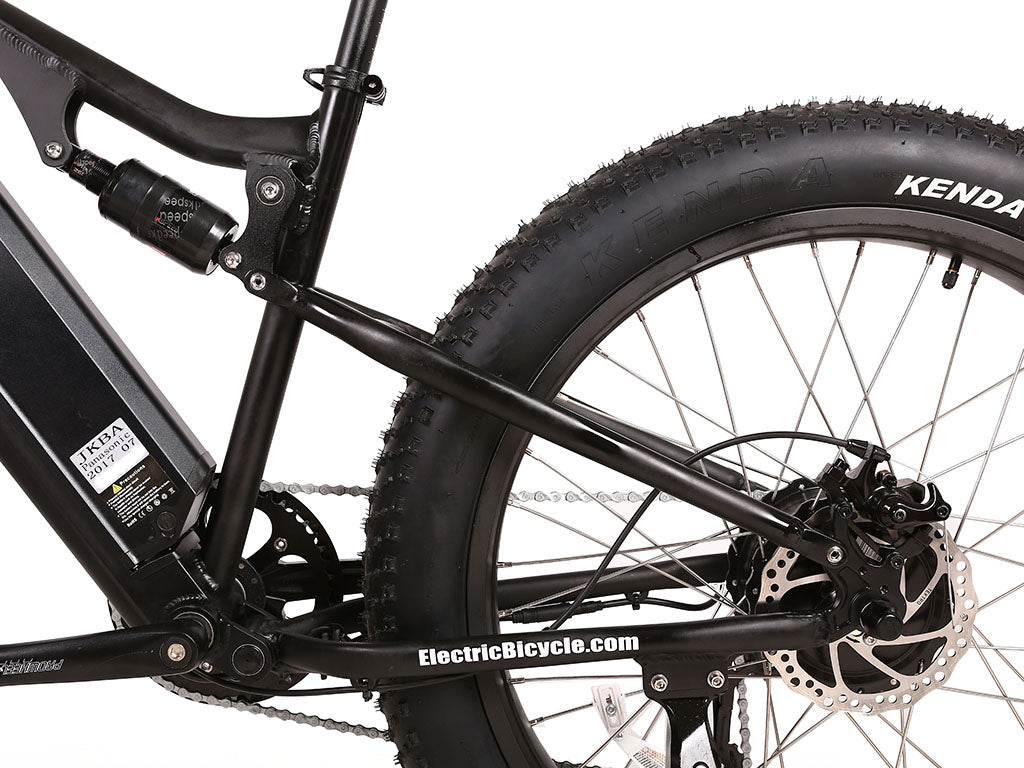

Front Suspension Included & Rear Mono Shock |
Front Sprocket |
Aluminum Alloy Sprocket |
Derailleur
|

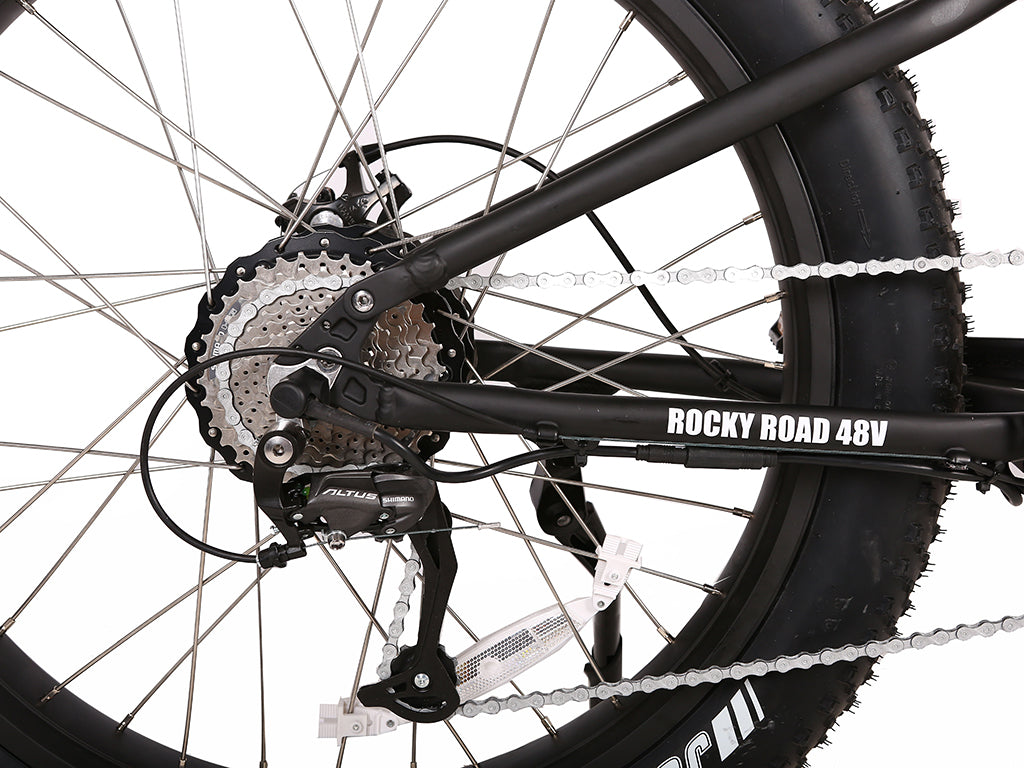

Shimano® 9-Speed Atlus Gears & Shifter |
Seat & Post |
Aluminum Alloy Adjustable Seat Post & Velo Mountain Bike Seat |
Quick Release |
Front & Rear Wheels Have Quick Release Axles - Flip Lever |
Gooseneck |
Aluminum VP |
Handle Bars |
Aluminum Alloy Mountain Bike Handle Bars |
Head Light |
Yes, included as free accessory add on - Battery Operated Snap-On LED (Not covered under warranty) |
Accessories |
Drink Holder On Handle Bars Included |
Bicycle In Box Weight |
81.5 lbs |
Suggested Max Weight |
350 lbs. |
Warranty |
1 Year Warranty & 1 Year Battery Warranty |
Notes |
*depends on rider weight & terrain Distance obtainable when using SPAS |
